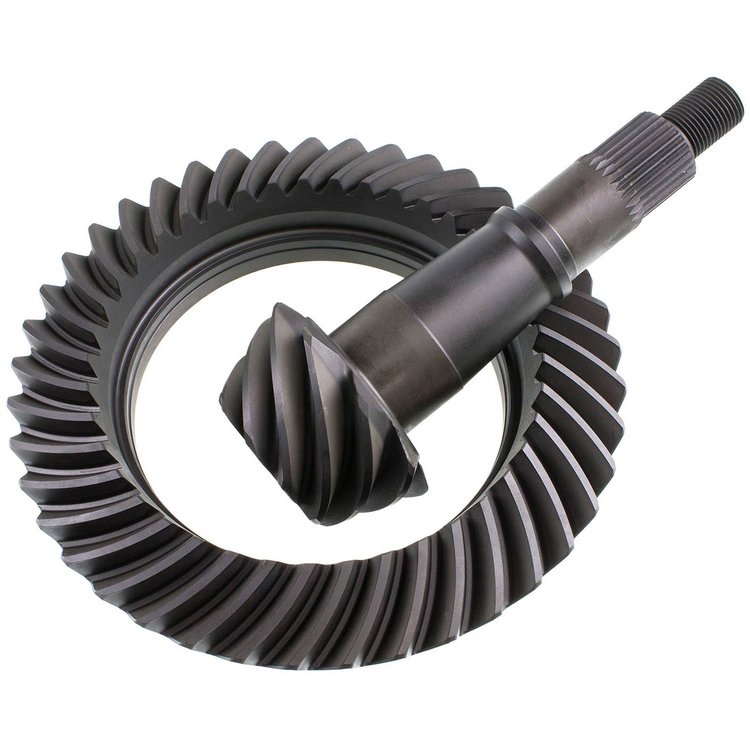

Ring & Pinion Gears Ratio: 4.56
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-GM9.5-456

Ring & Pinion Gears Ratio: 4.56

$32690
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM 9.5" 14-Bolt Rear
Ring & Pinion Gears
  • Ratio: 4.56
  • Teeth: 41-9

    MOTIVE GEAR GM9.5-456 Features:

    Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
      • Part TypeRing and Pinion
      BrandMOTIVE GEAR
      Package Height5.4
      Package Width11.2
      Package Length15.2
      Weight21.45 PG
      Part CategoryPerformance Parts
      Ring Gear RotationStandard
      Ring Gear Material8620 Steel
      Ring Gear Diameter9.5 in (241.3 mm)
      Ring Gear Tooth Quantity41
      Pinion Shaft Diameter1.876 in (47.7 mm)
      Pinion Gear Tooth Quantity9
      Axle TypeGM 9.5 in.
      Ring Gear Bolt Quantity12
      Part FitmentSemi Universal
      Cover Bolt Quantity14
      Pinion Spline Count30
      Vendor Part NumberGM9.5-456
      Package Qty1
      Package TypeEA
      No Questions
      No Reviews
      Please click here to download the instructions PDF file
