Product Discontinued

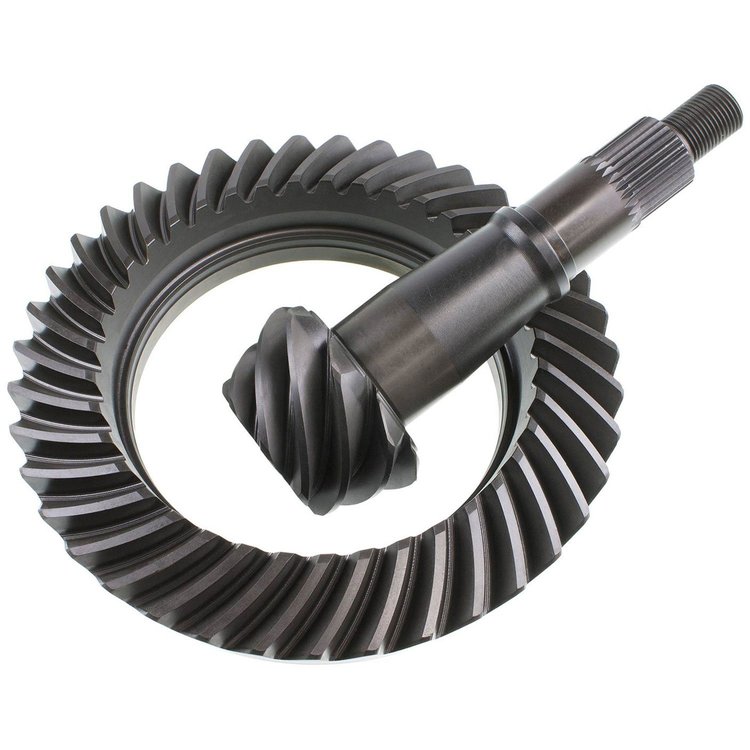

MOTIVE GEARPART NUMBER: 683-GM9.5-488

Ring & Pinion Gear Ratio: 4.88

Name: Ring & Pinion Gear Ratio: 4.88
Brand: MOTIVE GEAR
SKU: 683-GM9.5-488
Price: 326.88 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM 9.5" 14-Bolt Rear

Ratio: 4.88
Teeth: 39-8

Specifications:
RG Diameter: 9.5"
(12) 12 MM X 1.5 LH Threaded Bolts
Pinion Diameter: 1.876"
30-Spline
Cases: No Case Breaks
8620 Material - Heat Treated

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.8

Package Width11.3

Package Length15.3

Weight20.66 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Material8620 Steel

Ring Gear Diameter9.5 in (241.3 mm)

Ring Gear Tooth Quantity39

Pinion Shaft Diameter1.876 in (47.7 mm)

Pinion Gear Tooth Quantity8

Axle TypeGM 9.5 in.

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Cover Bolt Quantity14

Pinion Spline Count30

Vendor Part NumberGM9.5-488

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
