![Ring & Pinion Gears GM 9.760 in. 12-Bolt [Ratio: 4.10]](https://www.jegs.com/images/mini_750/600/683/683-gm9.76-410.jpg)
Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-GM9.76-410

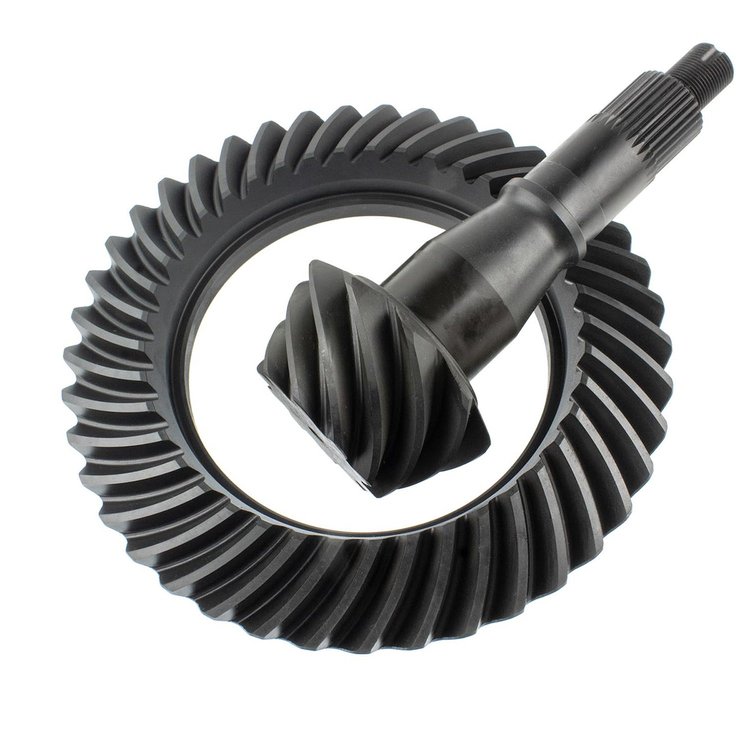

Ring & Pinion Gears GM 9.760 in. 12-Bolt [Ratio: 4.10]
$56097
Ships on 09/18/2026
Lowest Price GuaranteeGM 9.760 in. 12-Bolt
Ring & Pinion GearsGM 9.760 in. 12-Bolt Ratio: 4.10 Teeth: 41-10
Motive Gear GM9.76-410 Features:
- Cover Bolt Quantity: 12
- Differential Carrier Break: 3.42-Up
- Pinion Shaft Diameter: 1.430 in.
- Pinion Spline Count: 32
- Ring Gear Bolt Quantity: 12
- Ring Gear Diameter: 9.760 in.
- 8620 Steel
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.4
Package Width11.1
Package Length15.0
Weight20.75 PG
Part CategoryPerformance Parts
Ring Gear Material8620 Steel
Ring Gear Tooth Quantity41
Pinion Shaft Diameter1.43 in (36.3 mm)
Pinion Gear Tooth Quantity10
QuantitySold as a set
Gear Ratio4.10
Ring Gear Bolt Quantity12
Part FitmentSemi Universal
Cover Bolt Quantity12
Pinion Spline Count32
Vendor Part NumberGM9.76-410
Package Qty1
Package TypeEA
