Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-MGK-510

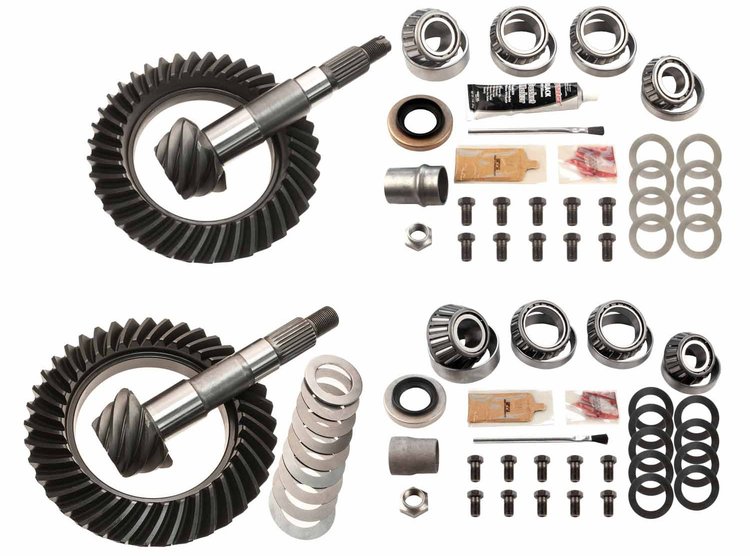

Complete Front and Rear Ring and Pinion Kit 1986-1988 Toyota Pickup, 4Runner V6 - 5.29 Ratio
$82312
Ships on 09/18/2026
Lowest Price Guarantee5.29 Ratio
Complete Front and Rear Ring and Pinion Kit1986-1988 Toyota Pickup, 4Runner V6 For Toyota 7.500 in. IFS and 8 in. Differential Ratio: 5.29
This Motive Gear MGK-510 Kit includes everything you need to upgrade the gear ratios in the front and rear axles of your 1986-1988 Toyota Pickup and 4Runner V6.
Features:
- 8620 steel ring gear material
- Standard ring rear rotation
- Cover bolt quantity: Dropout
- Pinion gear tooth quantity: 7
- Pinion shaft diameter: 1.378 in.
- Pinion spline: 23 front; 27 rear
- Ring gear diameter: 7.500 in. front; 7.800 in. rear
- Ring gear bolt quantity: 10
- Ring gear tooth quantity: 37
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height12.0
Package Width16.0
Package Length16.0
Weight37.75 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity37
PositionFront and Rear
QuantitySold as a kit
Cover Bolt QuantityDropout
Pinion Spline Count23 Front, 27 Rear
Ring Gear Material8620 Steel
Ring Gear Diameter7.500 in. Front, 7.800 in. Rear
Pinion Shaft Diameter1.378 in (35 mm)
Pinion Gear Tooth Quantity7
Axle TypeToyota 7.500 in., Toyota 8 in.
Gear Ratio5.29
Ring Gear Bolt Quantity10
Part FitmentDirect Fit
Vendor Part NumberMGK-510
Package Qty1
Package TypeEA
