Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-MGK-517

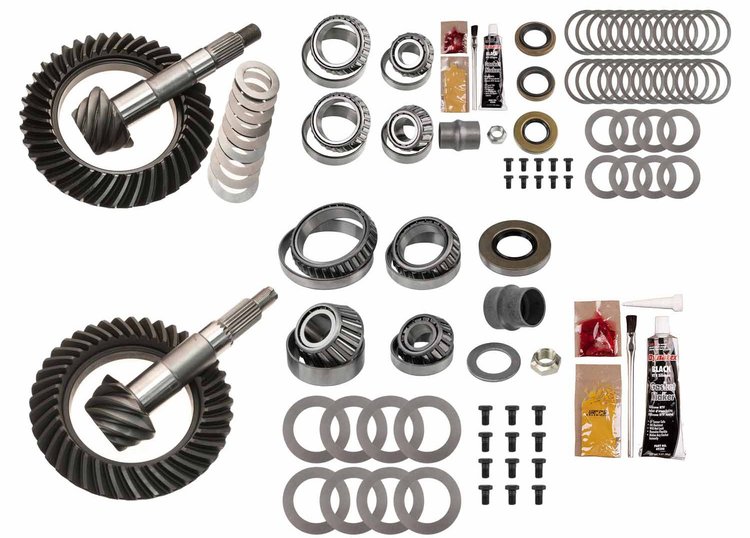

Complete Front and Rear Ring and Pinion Kit 1995-2002 Toyota Tacoma, 1996-2002 Toyota 4Runner - 5.29 Ratio
$1,14599
Ships on 09/18/2026
Lowest Price Guarantee5.29 Ratio
Complete Front and Rear Ring and Pinion Kit1995-2002 Toyota Tacoma 1996-2002 Toyota 4Runner For Toyota 7.500 in. Reverse and 8 in. Differential Ratio: 5.29
This Motive Gear MGK-517 Kit includes everything you need to upgrade the gear ratios in the front and rear axles of your 1995-2002 Toyota Tacoma, or 1996-2002 Toyota 4Runner.
Features:
- 8620 steel ring gear material
- Reverse front ring rear rotation; Standard rear ring rear rotation
- Cover bolt quantity: Clamshell front; dropout rear
- Pinion gear tooth quantity: 7
- Pinion shaft diameter: 1.378 in.
- Pinion spline: 23 front; 27 rear
- Ring gear diameter: 7.500 in. front; 7.800 in. rear
- Ring gear bolt quantity: 10
- Ring gear tooth quantity: 37
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height12.0
Package Width16.0
Package Length16.0
Weight44.0 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse Front, Standard Rear
Ring Gear Tooth Quantity37
PositionFront and Rear
QuantitySold as a kit
Cover Bolt QuantityClamshell Front, Dropout Rear
Pinion Spline Count23 Front, 27 Rear
Ring Gear Material8620 Steel
Ring Gear Diameter7.500 in. Front, 7.800 in. Rear
Pinion Shaft Diameter1.378 in (35 mm)
Pinion Gear Tooth Quantity7
Axle TypeToyota 7.500 in., Toyota 8 in.
Gear Ratio5.29
Ring Gear Bolt Quantity10
Part FitmentDirect Fit
Vendor Part NumberMGK-517
Package Qty1
Package TypeEA
