Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-MGK-520

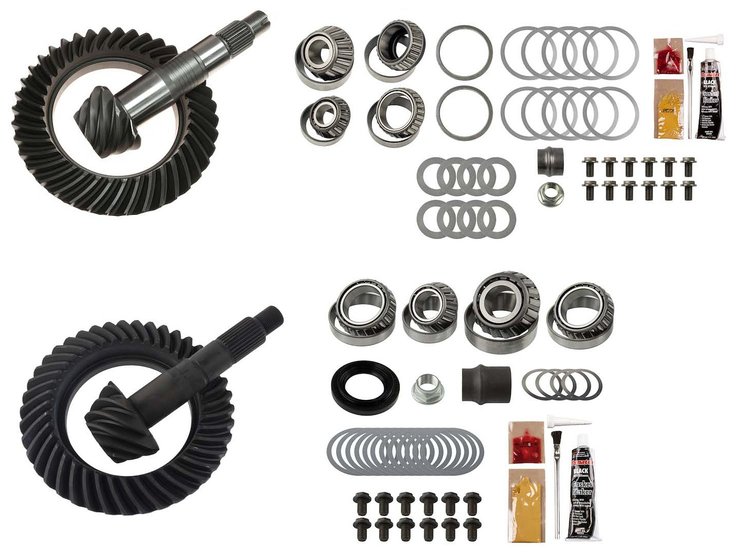

Complete Front and Rear Ring and Pinion Kit 2005-2015 Toyota Tacoma - 4.56 Ratio
$1,37099
Ships on 09/18/2026
Lowest Price Guarantee4.56 Ratio
Complete Front and Rear Ring and Pinion Kit2005-2015 Toyota Tacoma For Toyota 8 IFS in. and 8.400 in. Differential Ratio: 4.56
This Motive Gear MGK-520 Kit includes everything you need to upgrade the gear ratios in the front and rear axles of your 2005-2015 Toyota Tacoma.
Features:
- 8620 steel ring gear material
- Reverse front ring rear rotation; Standard rear ring rear rotation
- Cover bolt quantity: Dropout
- Pinion gear tooth quantity: 9
- Pinion shaft diameter: 1.370 in. front; 1.570 in. rear
- Pinion spline: 29 front; 30 rear
- Ring gear diameter: 8 in. front; 8.125 in. rear
- Ring gear bolt quantity: 10 front; 12 rear
- Ring gear tooth quantity: 41
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height12.0
Package Width16.0
Package Length16.0
Weight42.0 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse Front, Standard Rear
Ring Gear Tooth Quantity41
PositionFront and Rear
QuantitySold as a kit
Cover Bolt QuantityDropout
Pinion Spline Count29 Front, 30 Rear
Ring Gear Material8620 Steel
Ring Gear Diameter8 in. Front, 8.125 in. Rear
Pinion Shaft Diameter1.370 in. Front, 1.570 in. Rear
Pinion Gear Tooth Quantity9
Axle TypeToyota 8 in. IFS, Toyota 8.400 in.
Gear Ratio4.56
Ring Gear Bolt Quantity10 Front, 12 Rear
Part FitmentDirect Fit
Vendor Part NumberMGK-520
Package Qty1
Package TypeEA
