Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-MGK-524

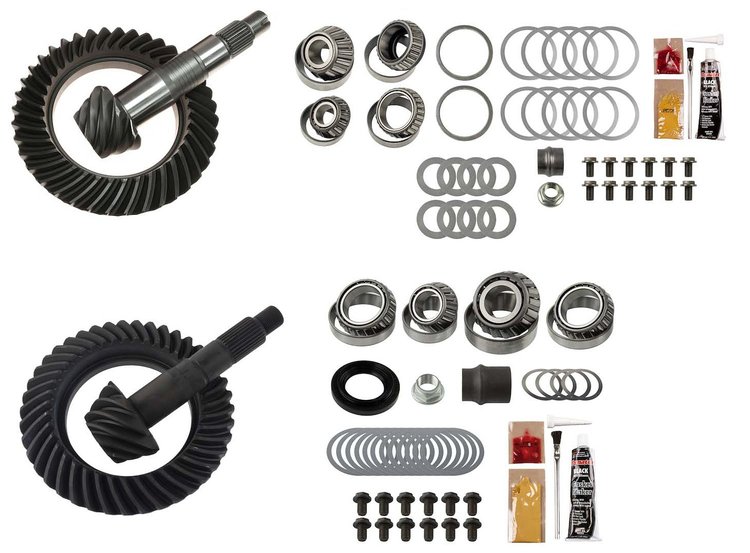

Complete Front and Rear Ring and Pinion Kit 2007-2020 Toyota Tacoma - 4.88 Ratio
$2,06399
Ships on 09/18/2026
Lowest Price Guarantee4.88 Ratio
Complete Front and Rear Ring and Pinion Kit2007-2020 Toyota Tacoma For Toyota 9 in. and 10.500 in. Differential Ratio: 4.88
This Motive Gear MGK-524 Kit includes everything you need to upgrade the gear ratios in the front and rear axles of your 2007-2020 Toyota Tacoma.
Features:
- 8620 steel ring gear material
- Reverse front ring rear rotation; Standard rear ring rear rotation
- Cover bolt quantity: Clamshell front; 12 rear
- Pinion gear tooth quantity: 8
- Pinion shaft diameter: 1.570 in. front; 1.760 in. rear
- Pinion spline: 34
- Ring gear diameter: 9 in. front; 10.500 in. rear
- Ring gear bolt quantity: 12
- Ring gear tooth quantity: 39
Easy Gear Ratio Upgrades for Your Toyota
Motive Gear has created a simple solution for re-gearing your Toyota 4x4. These kits are the perfect upgrade for needing that extra punch when increasing tire size and low-speed crawling on an off-road adventure. Each includes a front and rear ring and pinion gear, front and rear bearing kit, shims, and high-quality ring gear bolts.
Part TypeRing and Pinion
Product LineMotive Gear Toyota Complete Front and Rear Differential Kits
BrandMOTIVE GEAR
Package Height12.0
Package Width16.0
Package Length16.0
Weight61.0 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse Front, Standard Rear
Ring Gear Tooth Quantity39
PositionFront and Rear
QuantitySold as a kit
Cover Bolt QuantityClamshell Front, 12 Rear
Pinion Spline Count34
Ring Gear Material8620 Steel
Ring Gear Diameter9 in. Front, 10.500 in. Rear
Pinion Shaft Diameter1.570 in. Front, 1.760 in. Rear
Pinion Gear Tooth Quantity8
Axle TypeToyota 9 in., Toyota 10.500 in.
Gear Ratio4.88
Ring Gear Bolt Quantity12
Part FitmentDirect Fit
Vendor Part NumberMGK-524
Package Qty1
Package TypeEA
