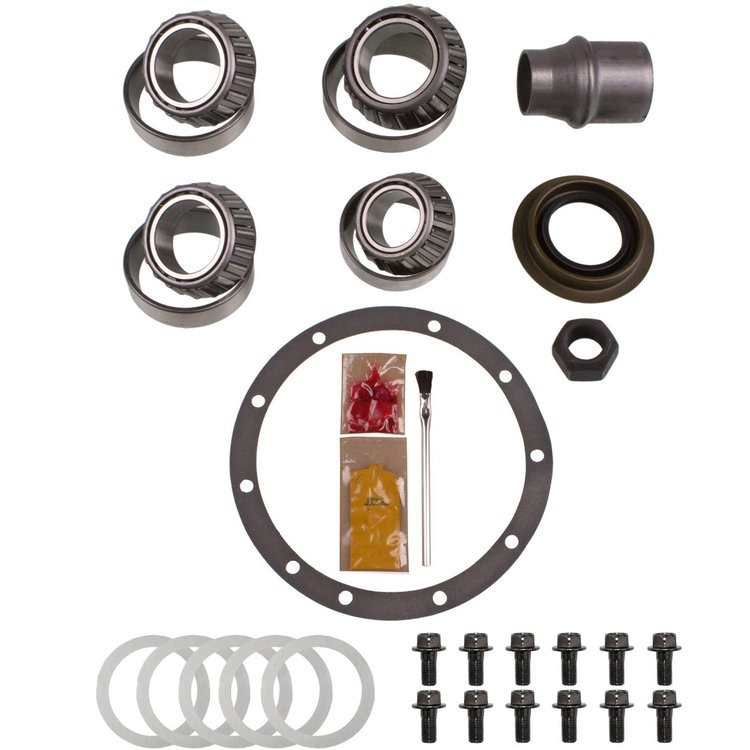

R8.75RLMKT Ring and Pinion Master Installation Kit For 1960-1974 Chrysler
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-R8.75RLMKT

R8.75RLMKT Ring and Pinion Master Installation Kit For 1960-1974 Chrysler

$20466
ShippingShips on 09/18/2026
Lowest PriceLowest Price Guarantee

Chrysler
Master Installation Kit
  • 1960-1974 Chrysler 8.75 in. 489 Casting with Sure Grip & Power Lock
    Includes:
  • Timken Front/Rear Pinion Bearing
  • Pinion Seal
  • Carrier/Pilot Bearing
  • Gear Marking Compound
  • Crush Sleeve
  • Pinion Nut
  • Brush

    Motive Gear R8.75RLMKT Ring and Pinion Master Installation Kit Features:

    • 1.796 in. carrier bearings
    • OEM style replacement
    • Part TypeRing and Pinion Installation Kit
    BrandMOTIVE GEAR
    Package Height2.4
    Package Width11.2
    Package Length11.9
    Weight6.6 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Carrier Bearings IncludedYes
    Axle Seals IncludedNo
    Differential Case Design TypeChrysler 8.75
    Carrier Shims IncludedYes
    PositionFront and Rear
    Cover Gasket IncludedYes
    Ring Gear Bolts IncludedYes
    Crush Sleeve IncludedYes
    QuantitySold as a Kit
    Tail Bearing IncludedYes
    Pinion Spline Count10
    Pinion Shims IncludedYes
    Pinion Nut IncludedYes
    Axle TypeChrysler 8.75 in.
    Axle Bearings IncludedNo
    Ring Gear Bolts12
    Part FitmentSemi Universal
    Pinion Seal IncludedYes
    Vendor Part NumberR8.75RLMKT
    Package Qty1
    Package TypeEA
