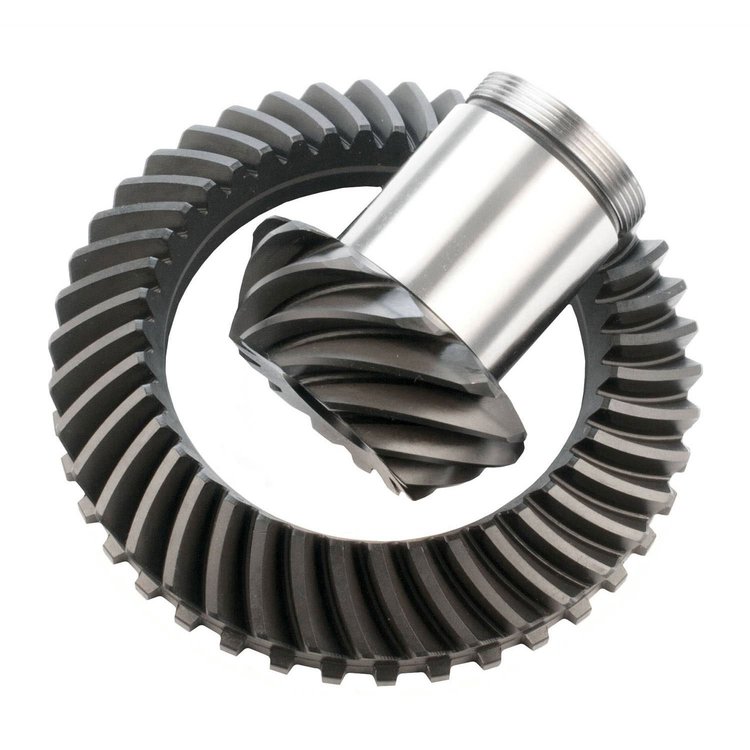

Ring & Pinion Gears 1997-2013 Chevy C5/C6 Corvette
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-V885342L

Ring & Pinion Gears 1997-2013 Chevy C5/C6 Corvette

$64797
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM Corvette Style 9-Bolt
Ring & Pinion Gears
  • 1997-2013 Chevy C5/C6 Corvette
  • Ratio: 3.42
  • Teeth: 41-12

    • Diameter: 8.25"
    • 27 Splines
    • 8620 Steel
    • Standard Rotation
    • 3.15 Ratio Carrier and Higher
    • Excludes Grand Sport/Z06/ZR1 and Automatic Transmissions After 2004
    • Part TypeRing and Pinion
    BrandMOTIVE GEAR
    Package Height5.25
    Package Width11.0
    Package Length15.5
    Weight13.95 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Ring Gear Tooth Quantity41
    Differential Carrier Break3.15 and Higher
    Cover Bolt Quantity9
    Pinion Spline Count27
    Ring Gear Material8620 Steel
    Ring Gear Diameter8.25 in (209.6 mm)
    Splined Bore Diameter1.19
    Pinion Gear Tooth Quantity12
    Axle TypeGM 8.25 in. Corvette
    Ring Gear Bolt Quantity10
    Part FitmentDirect Fit
    Vendor Part NumberV885342L
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
