Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-V885355

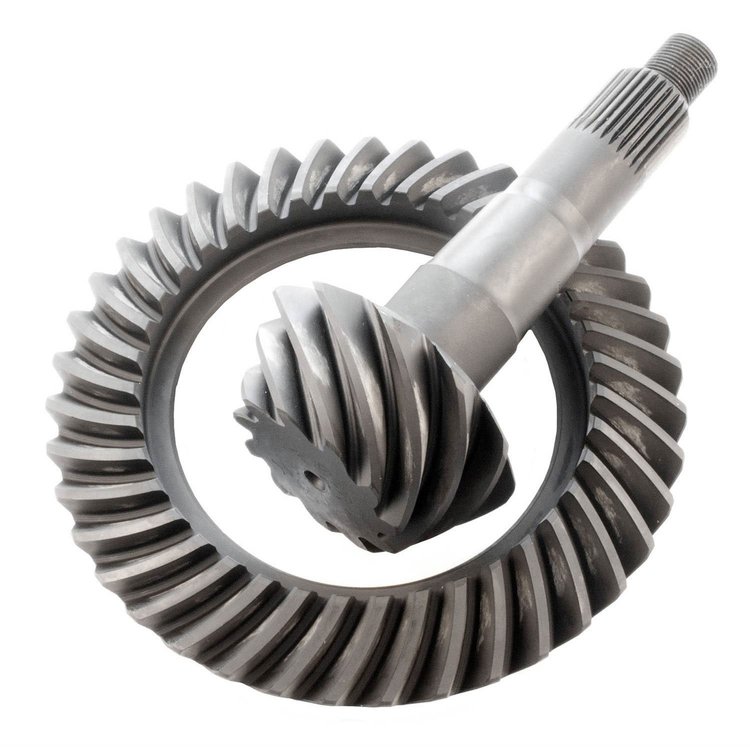

Ring & Pinion Gears 1963-1979 Corvette

Name: Ring & Pinion Gears 1963-1979 Corvette
Brand: MOTIVE GEAR
SKU: 683-V885355
Price: 513.99 USD
Availability: InStock

^$513⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

GM Corvette Style 10-Bolt

1963-1979 Corvette
Ratio: 3.55
Teeth: 39-11
8620 Material
Heat Treated

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.25

Package Width11.0

Package Length15.5

Weight14.15 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity39

Differential Carrier Break3.90 and Lower

Cover Bolt Quantity8

Pinion Spline Count30

Ring Gear Material8620 Steel

Ring Gear Diameter8.25 in (209.6 mm)

Pinion Shaft Diameter1.625 in (41.3 mm)

Pinion Gear Tooth Quantity11

Axle TypeGM 8.5 in. Corvette

Ring Gear Bolt Quantity10

Part FitmentDirect Fit

Vendor Part NumberV885355

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
