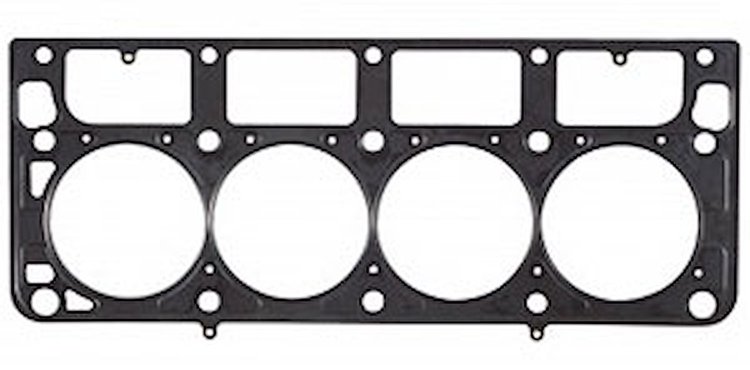

Multi-Layered Steel Head Gasket 1997-2005 GM LS1 5.7L
Product Discontinued
MR GASKETPART NUMBER: 720-3146G

Multi-Layered Steel Head Gasket 1997-2005 GM LS1 5.7L

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM
    Multi-Layered Steel Head Gasket
  • 1997-2005 GM LS1 5.7L
  • Bore: 3.945''
  • Thickness: .051''

  • Maximum Sealing
  • Reduced Bore Distortion
  • Uniform Bolt Load Distribution
  • Excellent Radial Strength

These MLS Head Gaskets seal extreme cylinder pressure in high-compression, turbo and supercharged, and nitrous engines. Made from viton-coated spring steel, the two embossed outer layers and inner spacer provide excellent stability and a tight, leakproof seal from cylinder head to engine block. The gaskets withstand shearing forces from bimetal (aluminum/iron) head and cast iron block combinations.

*Sold 1 per package

Show More
  • Lifetime warranty
  • Highest Grade Materials - MLS Head Gaskets are made from high grade Stainless steel materials. Each layer is individually formed using a state of the art laser cutting process and embossing formation.
  • Cutting-Edge Production Technology - our formation process uses soft radius forming to improve conformability and reduce stress points in the gasket, resulting more sealing capabilities.
  • Stress Relaxed - all gaskets are tempered to relax stresses from the forming process which improves torque retention and gasket performance.
  • Torque Retention - will not creep down and holds shape even after heat cycles.
  • Proprietary Coating - our coatings are applied after the formation process to ensure entire coverage of each of the outer layers and no break in the coating. These coatings offer resistance to oxidations from chemicals and do not require special surfacing techniques.

Part TypeHead Gasket
Product LineMr. Gasket Multi-Layered Steel (MLS) Head Gaskets
BrandMR GASKET
Package Height1.0
Package Width10.0
Package Length29.0
Weight1.1 PG
Part CategoryPerformance Parts
Lock WireNo
PositionN/A
QuantitySold individually
MaterialMulti-Layered Steel
Gasket MaterialMulti-layer steel
Part FitmentSemi Universal
Bore (Mm)100.203
Engine Make/SizeChevy 350 LS6
Compressed Thickness0.051 in (1.295 mm)
Bore3.945 in (100.203 mm)
Vendor Part Number3146G
Package Qty1
Package TypeEA
