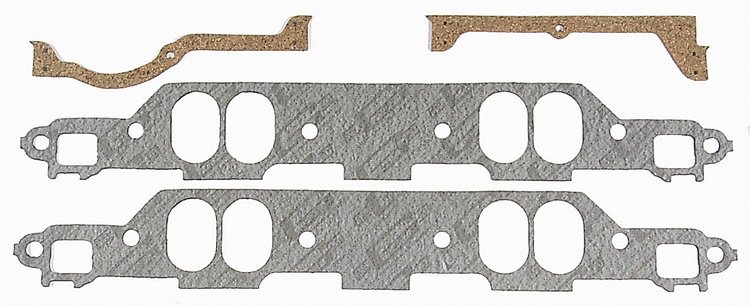

Intake Manifold Gaskets Ultra-Seal III Material
InfoVehicle Info Needed
MR GASKETPART NUMBER: 720-316

Intake Manifold Gaskets Ultra-Seal III Material

$4268
ShippingShips on 12/31/2026
Lowest PriceLowest Price Guarantee

Items You Need

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28040
$2099$23.99
You Save$3.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28045
$1899$20.99
You Save$2.00
Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00

Chrysler - Small Block
    Intake Manifold Gaskets
  • Ultra-Seal III Material
  • 1968-89 Chrysler W2 Heads
  • Thickness: .060''
  • W2 Port: 1.43'' X 2.05''


  • Intake Gasket Set

Get the right gasket for your project. These top-of-the-line Mr. Gasket Intake Manifold Gaskets are recommended for OE replacement, high-performance street, drag race and oval track applications. All Mr. Gasket Intake Gaskets are sold in pairs unless specified otherwise.

Performance Material

  • Manufactured from cellulose/nitrate composition gasket material
  • Provides excellent sealing and durability
  • Can be trimmed if necessary for modified ports
Show More

Ultra-Seal Material

  • Manufactured from cellulose/nitrate composition gasket material
  • Provides excellent sealing and durability
  • Silicone beading applied around each port to create a tight leakproof seal
  • Cam be trimmed for modified ports
  • Complete with manifold end rail seals and distributor gasket

Ultra-Seal III Material

  • Made from high-density, high-tensile strength, and high-temperature gasket material
  • Delivers excellent sealing properties for oil, fuel and coolant
  • Seals using low flange pressure (clamp force)
  • Can be modified (trimmed) easily to fit custom applications
  • Requires no gasket sealer for installation
  • Releases easily (no scrapping required) will not stick to mating surfaces when disassembling an engine
Part TypeIntake Manifold Gasket
Product LineMr. Gasket Intake Manifold Gasket Sets
BrandMR GASKET
Package Height1.0
Package Width4.3
Package Length25.8
Weight0.3 PG
Part CategoryPerformance Parts
Thickness0.063 in (1.6 mm)
Port Height2.05 in (52.1 mm)
PositionN/A
Port ShapeRectangle
QuantitySold as a set
Port Width1.43 in (36.3 mm)
Port StyleW-2
MaterialPerformance
Gasket MaterialCellulose/Nitrile composition
Part FitmentSemi Universal
Engine Make/SizeMopar 340-360
Vendor Part Number316
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
