Waterproof Relay with Pigtail Harness
InfoVehicle Info Needed
MR GASKETPART NUMBER: 720-40100G

Waterproof Relay with Pigtail Harness

$2421$26.90You Save$2.69
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

61-Piece Heat Shrink Tubing Kit [Black]

JEGS

61-Piece Heat Shrink Tubing Kit [Black]

Part Number : 555-10630
$2699$29.99
You Save$3.00
105-Piece Heat Seal Crimp Connector Kit

JEGS

105-Piece Heat Seal Crimp Connector Kit

Part Number : 555-10700
$5199$57.99
You Save$6.00
Sure Grip Cut & Pull Wire Stripper

JEGS

Sure Grip Cut & Pull Wire Stripper

Part Number : 555-80573
$1999$21.99
You Save$2.00
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00

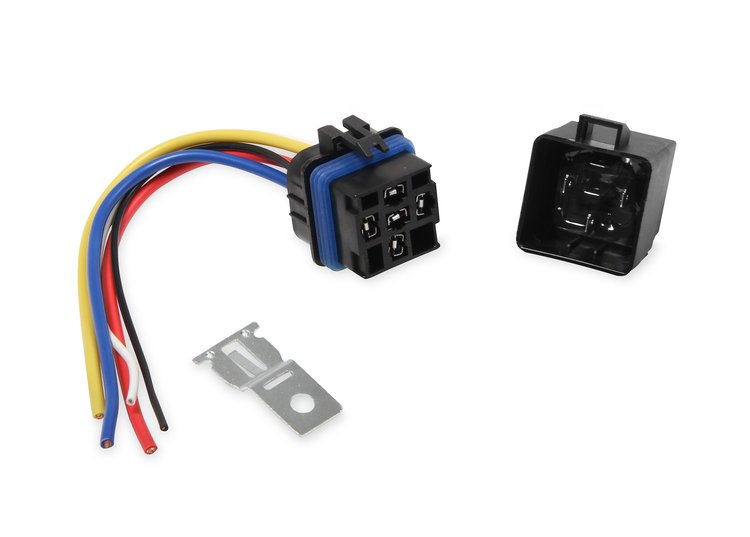

Waterproof Relay with Pigtail Harness
  • 40 AMP Max Load & 30 AMP Continuous Load
  • 12V DC
  • 5 Wires
  • 7” Pigtail Harness
  • Mounting Bracket Included

    Wiring Guide:

    • (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed)
    • (2) 18 gauge wires on black (85 ground) & white (86 +12V)
  • Mr. Gasket Waterproof Relays are ideal for marine, off-road, dirt track or any other application that is exposed to muddy or wet conditions. Each pigtail harness has 7” long leads with heavy-duty 12 & 18 gauge wires molded in rubber and surrounded by a gasket for a leak-proof seal. Designed as a 12V universal application electrical harness, these relays are ideal for use on electric fuel pumps, water pumps, cooling fans, auxiliary lights or any other electrical accessory operating within the specified amperage.

    Show More

    Features:

    • Completely sealed relay housing
    • 12V DC
    • Works in normally open or normally closed circuits
    • Pigtail wires are 7” long
    • Metal mounting bracket included
    Part TypeRelay
    Product LineMr. Gasket Waterproof Relays
    BrandMR GASKET
    Package Height1.3
    Package Width3.9
    Package Length7.1
    Weight0.25 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part Number40100G
    Package Qty1
    Package TypeEA
