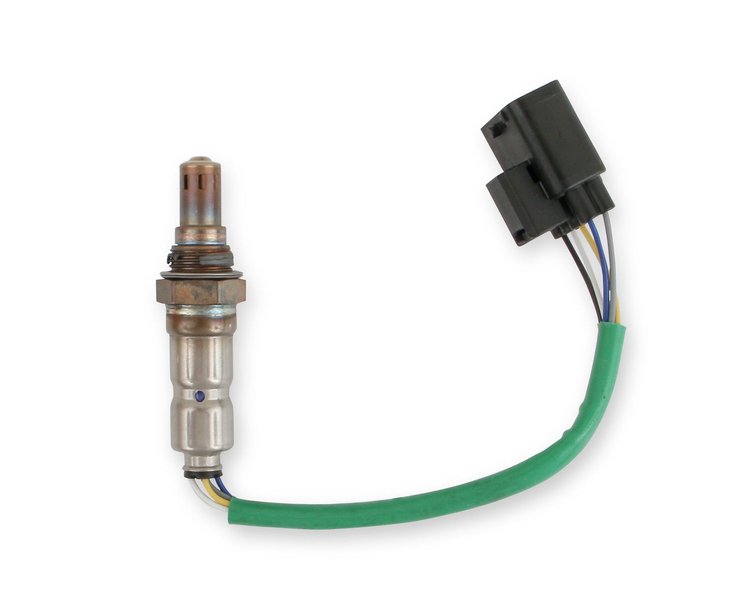

O2 Sensor for Power Grid Dual NTK Wideband Module
InfoVehicle Info Needed
MSD IGNITIONPART NUMBER: 121-2268

O2 Sensor for Power Grid Dual NTK Wideband Module

$22395$249.95You Save$26.00
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

Can-Bus Hub 4-Connections

MSD IGNITION

Can-Bus Hub 4-Connections

Part Number : 121-7740
$14035$155.95
You Save$15.60
Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00

O2 Sensors
O2 Sensor
  • For Power Grid Dual NTK Wideband Module 121-7766
  • Sold Individually

    MSD 2268 Features:

    The MSD Power Grid Dual NTK Wide Band O2 Module is a dual channel air-fuel ratio (AFR) system designed to interface with the Power Grid (PN 7730) to monitor and record the AFR of internal combustion engines.The Dual Wide-Band O2 sensor module is capable of measuring AFR as low as λ = 0.5 (7.35:1 Gasoline AFR equivalent). The AFR range is configurable using the MSDView software in conjunction with the Power Grid Controller (PN 7730). Excellent range of the NTK sensor gives this unit the ability to accurately monitor AFR's even on alcohol cars.The MSD Wide-Band O2 Sensor module also provides a 0.5-4.5 VDC analog output proportional to the AFR. This analog output can be sent to a gauge or a data acquisition system. A dual-color LED provides the system status at a glance.To provide accurate backpressure compensated AFR readings on turbocharged applications, the addition of an Exhaust Pressure Module, part number 7767, is required.
      • AFR Harnesses and Sensors

        MSD offers a variety of replacement harnesses and sensors that are exclusively designed for use with the NTK Wideband O2 Module.

      Part TypeOxygen Sensor
      Product LineMSD Power Grid Dual NTK Wideband O2 Module Components
      BrandMSD IGNITION
      Package Height1.5
      Package Width6.0
      Package Length8.0
      Weight1.0 PG
      Part CategoryPerformance Parts
      Wiring Harness IncludedNo
      Universal Or Specific FitSpecific
      Oxygen Sensor Bung IncludedNo
      Type/SeriesA/F Ratio
      QuantitySold individually
      Part FitmentUniversal
      Voltage Range0.5-4.5 V DC
      Vendor Part Number2268
      Package Qty1
      Package TypeEA
