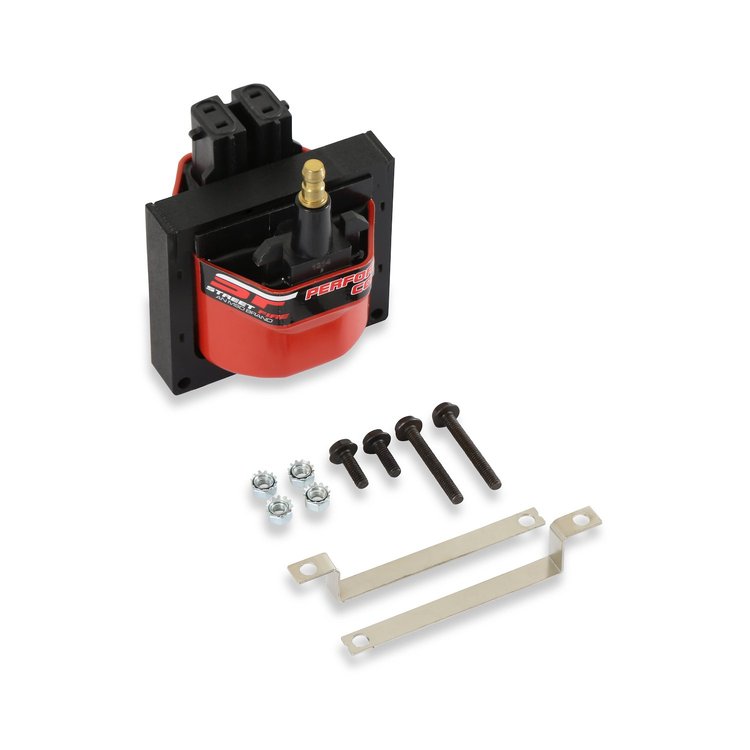

Street Fire Ignition Coil GM Dual Connector

Vehicle Info Needed

MSD IGNITIONPART NUMBER: 121-5526

Street Fire Ignition Coil GM Dual Connector

Name: Street Fire Ignition Coil GM Dual Connector
Brand: MSD IGNITION
SKU: 121-5526
Price: 74.95 USD
Availability: InStock

^$74⁹⁵

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Best Value

Save
^$22⁹⁶

555-40110

Remote HEI Coil for Select 1982-1997 Buick, Cadillac, Chevrolet, GMC, Oldsmobile and Pontiac Models with External Mounted Coil

^$51⁹⁹

GM Dual Connector
1/pkg

Application Correction: Fits 1996 Chevrolet G30 Base

Street Fire Coils mount in place of factory coils and accept OE connectors. Spark energy is increased thanks to improved materials and more efficient winding ratios that were selected by MSD engineers.

Part TypeIgnition Coil

Product LineMSD Street Fire Ignition Coils

BrandMSD IGNITION

Package Height2.8

Package Width6.05

Package Length7.8

Weight1.41 PG

Part CategoryPerformance Parts

Primary Resistance0.450 ohms

Coil Wire AttachmentMale/HEI

Coil StyleE-core

QuantitySold individually

Ballast Resistor IncludedNo

Maximum Voltage42,000 V

Turns Ratio85:01:00

Peak Current220 mA

Coil ShapeSquare

Mounting Bracket IncludedNo

Inductance7.0 mH

Coil ColorRed

Coil Wire IncludedNo

Spark Duration250 uS

Secondary Resistance5.5K ohms

Part FitmentSemi Universal

Coil Internal ConstructionEpoxy

Vendor Part Number5526

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
