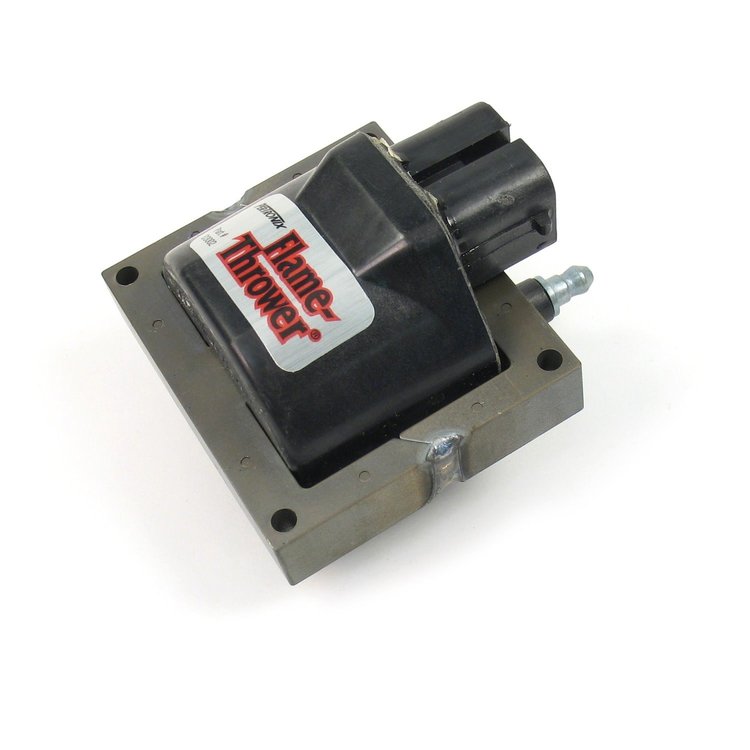

Flame-Thrower E-Core HEI Coil GM
InfoVehicle Info Needed
PERTRONIXPART NUMBER: 751-D3002

Flame-Thrower E-Core HEI Coil GM

$8233
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Spark Guard Dielectric Grease Resealable Container

MSD IGNITION

Spark Guard Dielectric Grease Resealable Container

Part Number : 121-8804
$4159$46.21
You Save$4.62

Flame-Thrower E-Core HEI Coils
  • GM
    • Flame-Thrower E-Core HEI Coil
    • GM
    • 50,000 Volts
    • 0.32 ohm
    • Remote Mount
    • Carb Approved D-57-21

      Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
      Pertronix Flame-Thrower E-Core Coils feature optimized winding design to maximize spark gap current and availble voltage. When teamed with Flame-Thrower Ignition Modules they produce 100% more energy accros the spark plug gap compared to the OEM coil.

      Features:
    • 50,000 Volts
    • Ultra low primary resistance values
    • Legal in all 50 states and Canada (C.A.R.B. # D-57-21)
    Part TypeIgnition Coil
    Product LinePertronix Flame-Thrower E-Core Coils
    BrandPERTRONIX
    Package Height4.2
    Package Width4.4
    Package Length4.5
    Weight1.35 PG
    Part CategoryPerformance Parts
    Carb Eo NumberD-57-21 (pdf)
    Primary Resistance0.310 ohms
    Coil Wire AttachmentMale/HEI
    Coil StyleE-core
    PositionN/A
    QuantitySold individually
    Overall Length2.86 in (72.6 mm)
    Ballast Resistor IncludedYes
    Maximum Voltage45,000 V
    Turns Ratio100:1
    Peak Current7.9 amps
    Coil ShapeSquare
    Title (Custom)PerTronix D3002 Flame-Thrower HEI Coil GM 50,000 Volt External
    Mounting Bracket IncludedNo
    Inductance3.1 mH
    Coil ColorBlack
    Coil Wire IncludedNo
    Spark Duration1.5 mS
    Product Height3.43 in (87.122 mm)
    Secondary Resistance6.8K ohms
    Part FitmentSemi Universal
    Coil Internal ConstructionEpoxy
    Product Width2.53 in (64.262 mm)
    Vendor Part NumberD3002
    Package Qty1
    Package TypeEA
