MSD IGNITIONPART NUMBER: 121-62013K

Digital 6A Ignition Control Kit Chevy

Name: Digital 6A Ignition Control Kit Chevy
Brand: MSD IGNITION
SKU: 121-62013K
Price: 793.56 USD
Availability: InStock

^$793⁵⁶

Ships Today

Lowest Price Guarantee

Street

Small Block Chevy
Big Block Chevy
Black

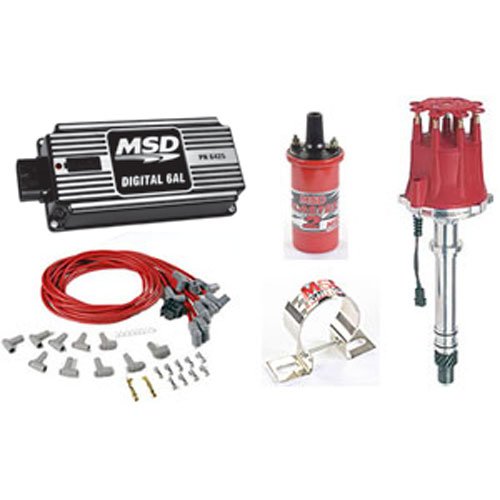

Includes:
MSD 6A Ignition Box
MSD Pro-Billet Distributor
MSD Plug Wires
MSD Blaster 2 Coil
MSD Coil Bracket

Kit Includes
MSD 6A Ignition Box 121-62013
MSD Pro-Billet Distributor 121-85551
MSD Plug Wires 121-31229
MSD Blaster 2 Coil 121-8202
MSD Coil Bracket 121-8213

Part TypeIgnition Boxes Easy Kit

BrandMSD IGNITION

Package Height6 in (152.4 mm)

Primary Resistance0.700 ohms

Housing FinishNatural

Housing Materialbillet aluminum

Ignition Box RequiredYes

Spark Plug Boot EndsEight 90 degree

Peak Current140 mA

Computer-Controlled CompatibleNo

Rfi SuppressionYes

Gear MaterialIron

Coil Internal ConstructionOil-filled

Advance TypeMechanical

Diameter (Mm)8.5

Distributor Boot MaterialSilicone

Marine UseNo

Coil StyleCanister

PositionN/A

ColorRED

Wire ColorRed

Ballast Resistor IncludedNo

Spark Plug Boot MaterialSilicone

Coil Wire IncludedNo

Trigger StyleMagnetic

Part CategoryPerformance Parts

Hardware IncludedNo

Carb Eo NumberD-40-37 (pdf)

Distributor TypeHEI/Breakerless

AssembledNo

Engine Make/SizeChevy Small Block (262-400)

Turns Ratio100:1

Spark Plug Boot ColorGray

Mounting Bracket IncludedNo

Inductance8.0 mH

Distributor Terminal EndsMale/HEI

Distributor Boot ColorGray

Secondary Resistance4.70K ohms

Slip CollarNo

Mechanical Tach DriveNo

Bracket MaterialSteel

Diameter2.125 in (53.975 mm)

Boot Type90 Degree

Coil Wire AttachmentFemale/Socket

Distributor Cap ColorRed

QuantitySold as a set

Maximum Voltage45,000 V

Coil ShapeRound

Coil ColorRed

Spark Duration350 uS

Distributor Gear RotationStandard

Conductor StyleSpiral core

Cap StyleMale/HEI

Part FitmentSemi Universal

Bracket FinishChrome

Package Qty1

Package TypeEA
