Vehicle Info NeededMSD IGNITIONPART NUMBER: 121-6201K
Digital 6A Ignition Control Kit Chevy
$87775
Ships Tomorrow
Lowest Price GuaranteeStreet
- Digital 6A Ignition Control Kit
- Small Block Chevy
- Big Block Chevy
- Red

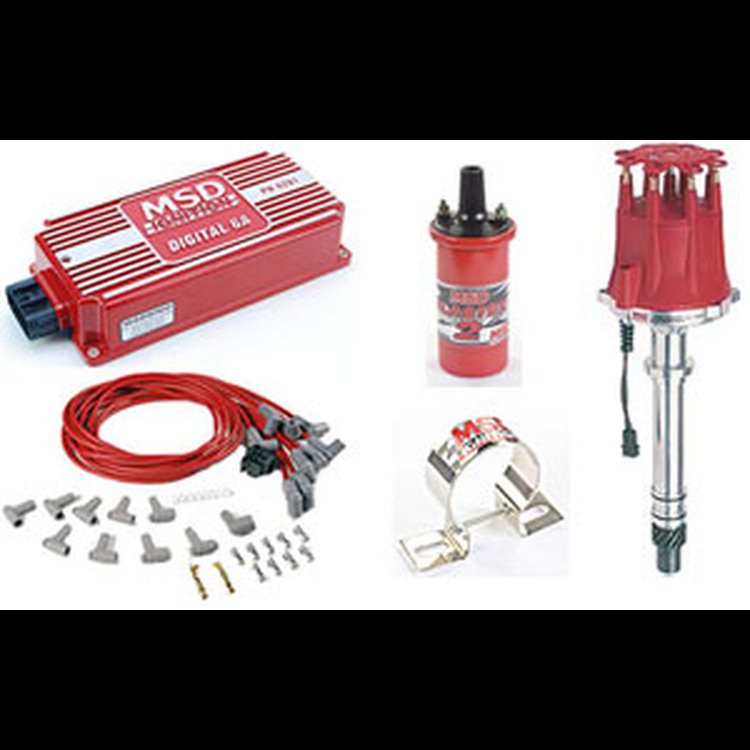

Includes: - MSD 6A Ignition Box
- MSD Pro-Billet Distributor
- MSD Plug Wires
- MSD Blaster 2 Coil
- MSD Coil Bracket
MSD started with a clean slate and drew up plans for an all-new housing. We kept the same footprint as the traditional 6AL but lowered the profile for a sleek look. The wiring is all routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean.Inside the Digital 6A you'll find a microprocessor that monitors and controls every firing. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the new Digital 6A deliver over 530 volts to the coil with up to 135mJ of spark energy for every firing! Increased output combined with MSD's proven multiple spark series is a win-win situation!
The new Digital 6A is supplied with the wiring harness and the components you'll need for installation. Compatible on 4, 6, or 8-cylinder engines with 12-volt negative ground electrical systems. Accepts trigger inputs from breaker points, amplifiers, and magnetic pickups.
Highlights - Higher output with 530 primary volts and 135mJ of spark energy
- Efficient components use less current to produce more power
- Same bolt pattern as the original 6A with a lower profile housing
- Built-in LED for system checks
- All wires exit the same side through a locked, sealed connectorOperating Specifications
- Spark Energy: 135-145 mJ per spark
- Primary Voltage: 520-540 volts
- Secondary Voltage: 45,000 volts
- Spark Series Duration: 20° Crankshaft Rotation
- RPM Range: 15,000 RPM with 14.4 volts
- Voltage Required: 12-15 volts, 7 volt Start
- Current Draw: 0.7 amp per 1,000 RPM
- Size: 8" L x 4" W x 1.825" H
- Weight: 1.7 lbs
Kit Includes - MSD 6A Ignition Box 121-6201
- MSD Pro-Billet Distributor 121-85551
- MSD Plug Wires 121-31229
- MSD Blaster 2 Coil 121-8202
- MSD Coil Bracket 121-8213
Part TypeIgnition Boxes Easy Kit
BrandMSD IGNITION
Package Height6 in (152.4 mm)
Primary Resistance0.700 ohms
Housing FinishNatural
Housing MaterialBillet Aluminum
Ignition Box RequiredYes
Spark Plug Boot EndsEight 90 degree
Peak Current140 mA
Computer-Controlled CompatibleNo
Rfi SuppressionYes
Gear MaterialIron
Coil Internal ConstructionOil-filled
Advance TypeMechanical
Diameter (Mm)8.5
Distributor Boot MaterialSilicone
Marine UseNo
Coil StyleCanister
PositionN/A
ColorRED
Wire ColorRed
Ballast Resistor IncludedNo
Spark Plug Boot MaterialSilicone
Coil Wire IncludedNo
Trigger StyleMagnetic
Part CategoryPerformance Parts
Hardware IncludedNo
Carb Eo NumberD-40-37 (pdf)
Distributor TypeHEI/Breakerless
AssembledNo
Engine Make/SizeChevy Small Block (262-400)
Turns Ratio100:1
Spark Plug Boot ColorGray
Mounting Bracket IncludedNo
Inductance8.0 mH
Distributor Terminal EndsMale/HEI
Distributor Boot ColorGray
Secondary Resistance4.70K ohms
Slip CollarNo
Mechanical Tach DriveNo
Bracket MaterialSteel
Diameter2.125 in (53.975 mm)
Boot Type90 Degree
Coil Wire AttachmentFemale/Socket
Distributor Cap ColorRed
QuantitySold as a set
Maximum Voltage45,000 V
Coil ShapeRound
Coil ColorRed
Spark Duration350 uS
Distributor Gear RotationStandard
Conductor StyleSpiral core
Cap StyleMale/HEI
Part FitmentUniversal
Bracket FinishChrome
Package Qty1
Package TypeEA
