75643-HC High-Current Solid-State Relay w/4 Channels, 35 Amps Each [Black]
InfoVehicle Info Needed
MSD IGNITIONPART NUMBER: 121-75643-HC

75643-HC High-Current Solid-State Relay w/4 Channels, 35 Amps Each [Black]

$20595$229.95You Save$24.00
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Wire Crimping Pliers and Stripping Tool

JEGS

Wire Crimping Pliers and Stripping Tool

Part Number : 555-80575
$1399$15.99
You Save$2.00
Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
105-Piece Heat Seal Crimp Connector Kit

JEGS

105-Piece Heat Seal Crimp Connector Kit

Part Number : 555-10700
$5199$57.99
You Save$6.00
61-Piece Heat Shrink Tubing Kit [Black]

JEGS

61-Piece Heat Shrink Tubing Kit [Black]

Part Number : 555-10630
$2699$29.99
You Save$3.00

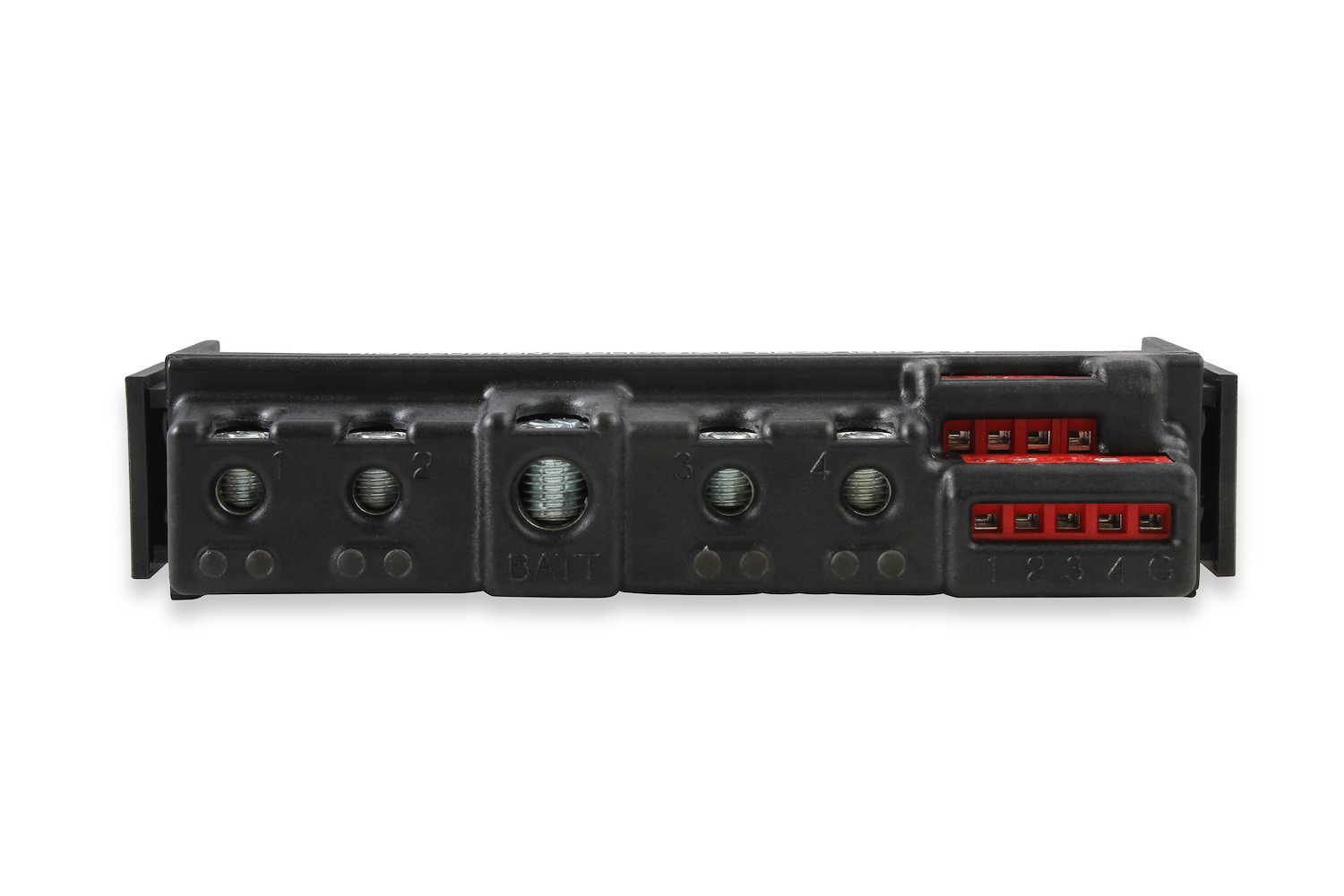

Solid-State Relays
High-Current Solid-State Relay
  • (4) Independent Channels
  • 35-Amps Each Continuous
  • 100-Amps Each for 8 Seconds
  • Provides up to 140 Combined Amps
  • 7-20 Volt Supply
  • Diagnostic LEDs & Status Indicators
  • Black
  • Sold Individually

    MSD 75643-HC High-Current Solid-State Relay Features:

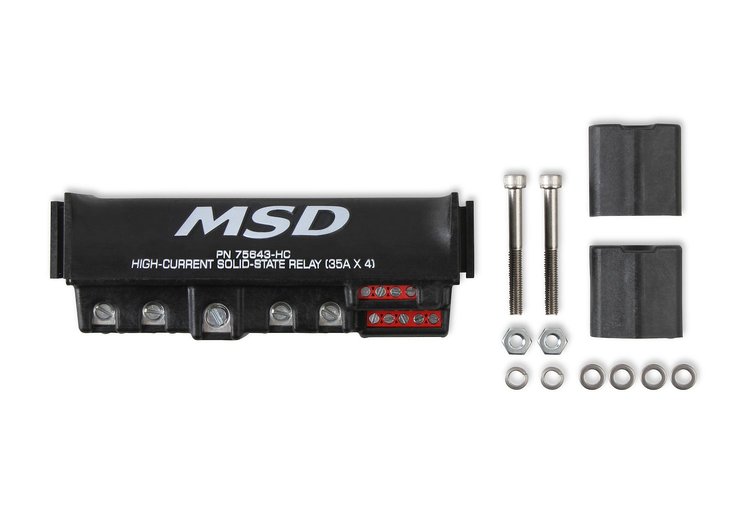

    • Includes (2) mounting tabs, (2) mounting bolts, (2) nuts, and (6) washers
    • Designed for use with electric fans, water pumps, nitrous solenoids, auxiliary lighting, and more
    • (4) Independent channels that operate at 35 Amps each continuous current (140 total)
    • Each channel can be run in parallel for devices needing more than 35 Amp single-channel rating
    • Built-in protection from over-temperature, short-circuiting, and current overload
    • Pulse Width Modulation (PWM) signal compatibility to control 150-hertz max output rate and a 50 to 90-percent duty cycle
    • Single-wire activation by using either power or ground
    • Can be rotated 90-degrees for various mounting configurations
    • Max on-time amperage ratings (per channel):
      • 35 Amps: Continuous
      • 40 Amps: 3 hours
      • 45 Amps: 30+ minutes
      • 50 Amps: 12 minutes
      • 60 Amps: 35-seconds
      • 80 Amps: 12-seconds
      • 100 Amps: 8-seconds

    MSD 75643-HC High-Current Solid-State Relay Note:

    • Recommended wire gauge usage:
      • Main input battery positive: 2 AWG
      • Channel 1-4 outputs: 8 AWG
      • 12 V and ground activation wires: 18-22 AWG

    FAQ

    What are the two types of solid state relays?

    • Zero-crossing relays: Activates when the AC voltage crosses zero.
    • Random turn-on relays: Triggered at any point in the AC cycle.

    What current does a solid state relay control?

    • MSD 75643-HC manages up to 20 amps of current effortlessly.
    • It reliably controls varying current loads for optimal performance.

    What is a solid state over current relay?

    • The MSD 75643 is an over current relay safeguarding against excessive electrical flow.
    • Monitors and prevents high current, ensuring system safety.

    What is the difference between SSR and mechanical relay?

    • MSD solid state relays (SSRs) like the 75643-HC use semiconductors for switching, offering faster response and longer lifespan.
    • Unlike mechanical relays, they have no moving parts, reducing wear and tear.
    • Protect and Simplify Your Vehicle Wiring

      MSD Ignition Relays handle accessories that draw high current or high amperage. These relays are reliable due to a fully-automated manufacturing process and coil winding procedure. They take the place of multiple relays and offer a cleaner wiring setup.

    Part TypeRelay
    Product LineMSD Ignition High-Current/High-Amperage Relays
    BrandMSD IGNITION
    Package Height3.2
    Package Width6.4
    Package Length6.6
    Weight0.81 PG
    Part CategoryPerformance Parts
    Amperage Rating35 amps
    Housing ColorBlack
    QuantitySold individually
    Part FitmentUniversal
    PoleFour
    Vendor Part Number75643-HC
    Package Qty1
    Package TypeEA
