Parts Breakdown

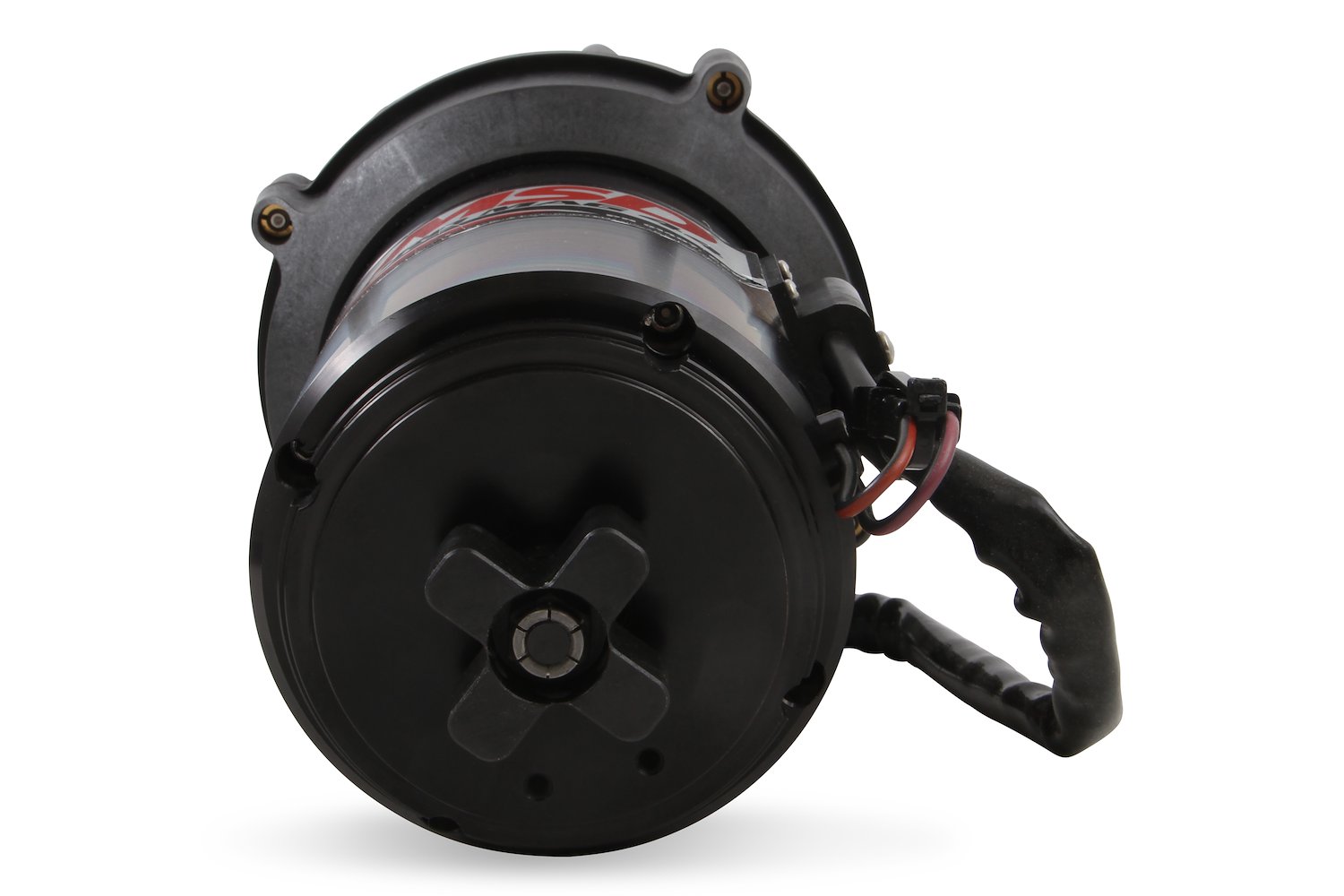

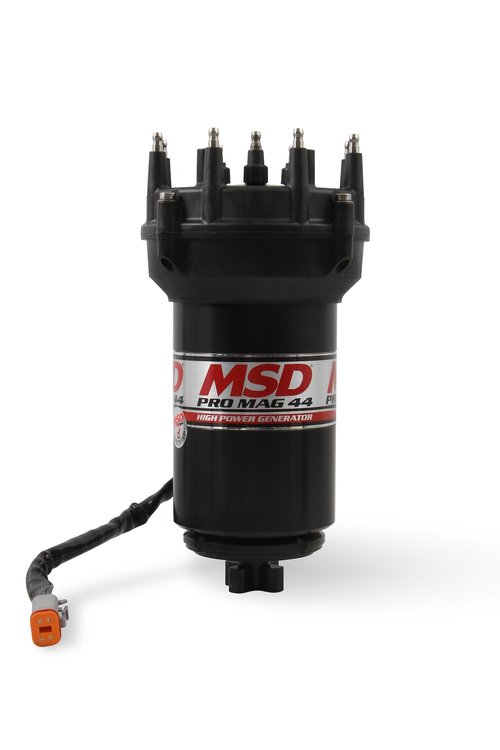

MSD's Pro-Mag 44 produces extraordinary energy with a magnetic pickup mounted in the generator's lower base to accurately trigger the reluctor's (8) precision paddles. The pickup of this durable magneto never needs adjustment and the assembly spins on a 1/2 (.500) in. shaft with sealed ball bearings for long-term performance.

Specifications:

• Primary Current: 44 Amps
• Spark Energy: 800 millijoules (at the gap)
• Secondary Voltage: 50,000 Volts
• Secondary Current: 1.2 Amps
• Spark Duration: 26-degrees Crankshaft Rotation
• RPM Rating: Through 12,000 RPM

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
