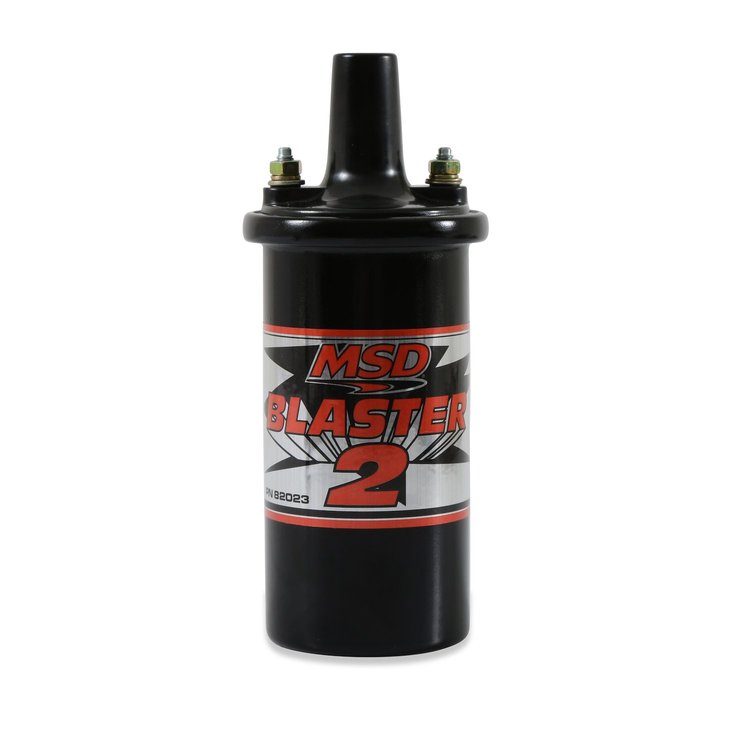

MSD Ignition 82023 Black Blaster 2 Coil Features:

• Improved output coil for electronic ignitions, Blaster Ignition or MSD 5, 6, and 7 Series (ballast resistor required for points)
• Alkyd tower with high dielectric properties is less prone to carbon tracking
• 100:1 turns ratio and lower primary resistance produce a high voltage output
• Metal canister is filled with a premium grade oil for cooling

MSD Ignition 82023 Blaster 2 Canister-Style Ignition Coil Notes:

• Ballast Resistor Required for Points-Style Ignitions
• Coil Should be Mounted in a Upright Position

Emissions Note:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number D-40-37 for OBDII 2003 or Older Vehicles.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

FAQ

Are MSD Blaster coils worth it?

• Absolutely, the MSD Blaster 2 coil (8202 MSD) enhances spark energy
• Provides improved combustion for increased power & efficiency
• Ideal for high-performance engines seeking better ignition

Does a MSD Blaster 2 coil need a resistor?

• No, the MSD Blaster 2 coil (8202 MSD) does not require an external resistor
• Designed for compatibility with most ignition systems

How many ohms is a MSD Blaster coil?

• The MSD Blaster 2 coil (8202 MSD) typically has around 0.7 to 0.8 ohms primary resistance
• Offers efficient energy transfer for optimal ignition performance

How to wire a MSD Blaster 2 coil?

• Connect the positive terminal to the ignition switch
• Ground the negative terminal to the chassis or engine block
• Use appropriate wiring diagrams for precise installation on your vehicle
