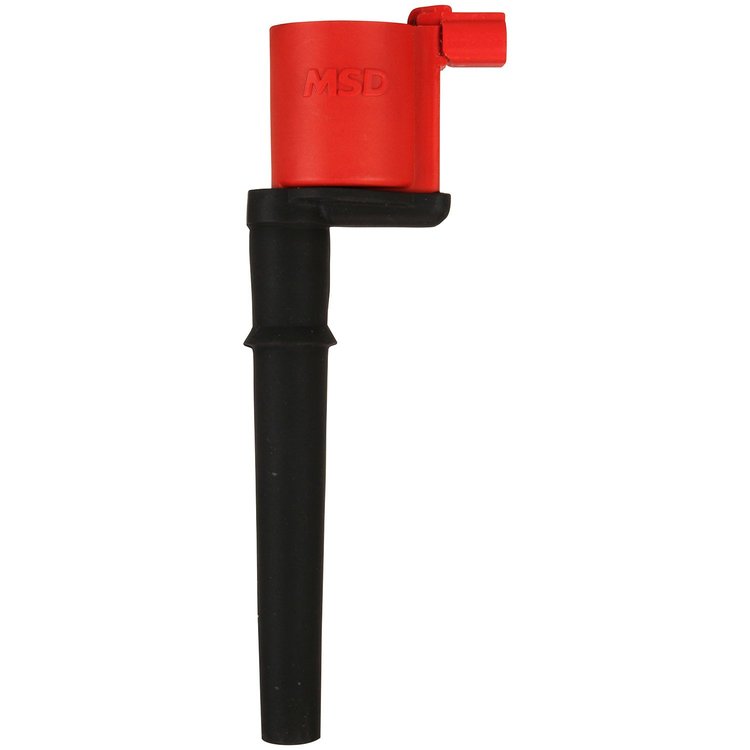

Blaster Coil-On-Plug 1999-2004 Ford 4.6L/5.4L DOHC 4V

Name: Blaster Coil-On-Plug 1999-2004 Ford 4.6L/5.4L DOHC 4V
Brand: MSD IGNITION
SKU: 121-8244
Price: 42.18 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

1999-2004

1999-2004 Ford 4.6L/5.4L DOHC 4V
1/pkg

Specs at 14 Volts
Turns Ratio: 75 to 1
Primary Resistance: .49 ohms
Secondary Resistance: 5.6K ohms
Inductance: 1.2 mH
Secondary Current: 70 mA
Spark Duration (mS): 600 us
Energy: 21 mJ
Maximum Voltage: 25KV
Fits 1999-2004 4.6L/5.4L DOHC 4V
Stock Replacement

Part TypeIgnition Coil

BrandMSD IGNITION

Package Height1.3

Package Width4.0

Package Length9.7

Weight0.52 PG

Part CategoryPerformance Parts

Mounting Bracket IncludedNo

Coil ColorRed

Carb Eo NumberD-40-42 (pdf)

Coil Wire AttachmentFemale/Socket

Coil Wire IncludedNo

Coil StyleCoil pack

QuantitySold individually

Ballast Resistor IncludedNo

Part FitmentDirect Fit

Coil Internal ConstructionEpoxy

Coil ShapeSquare

Vendor Part Number8244

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
