Made in USA

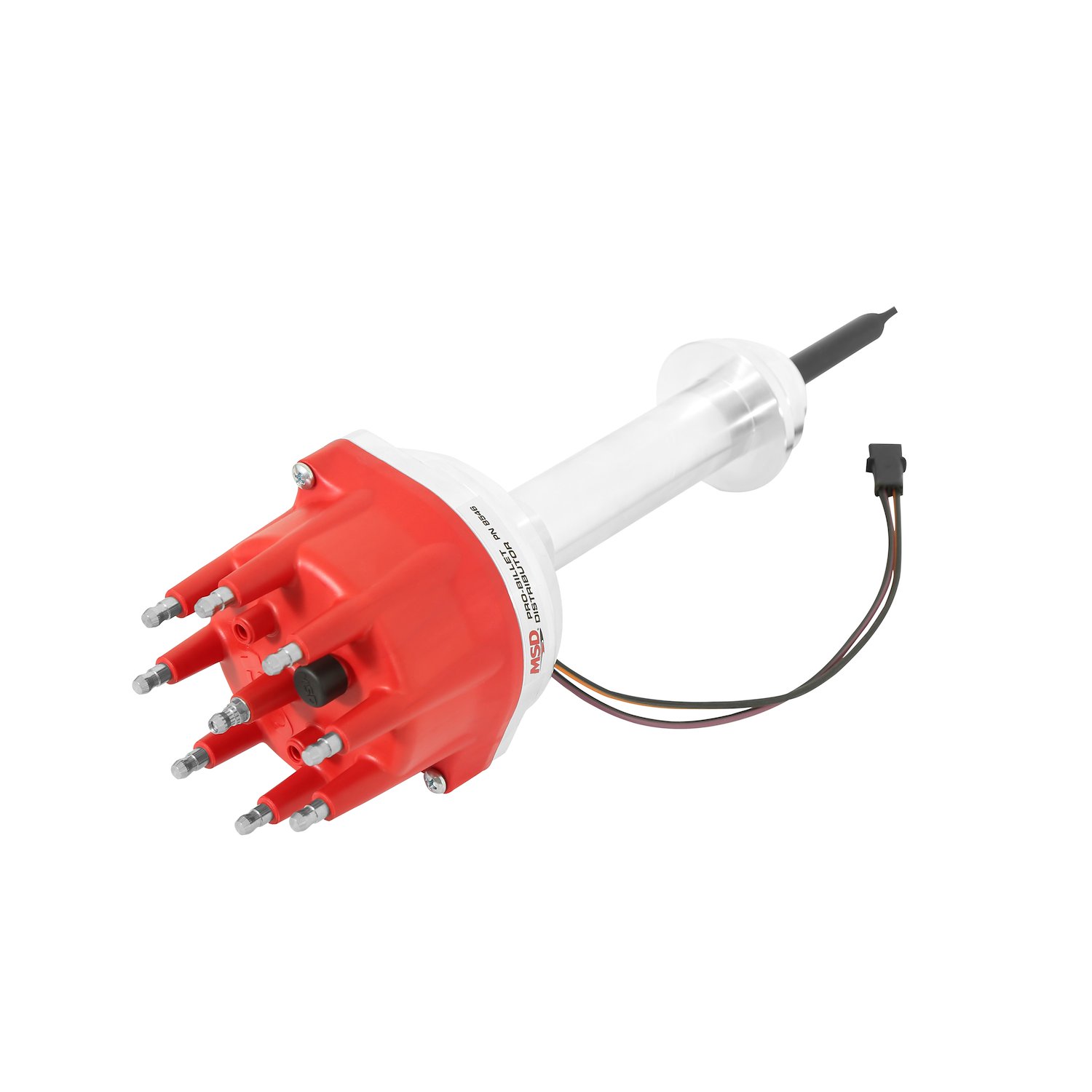

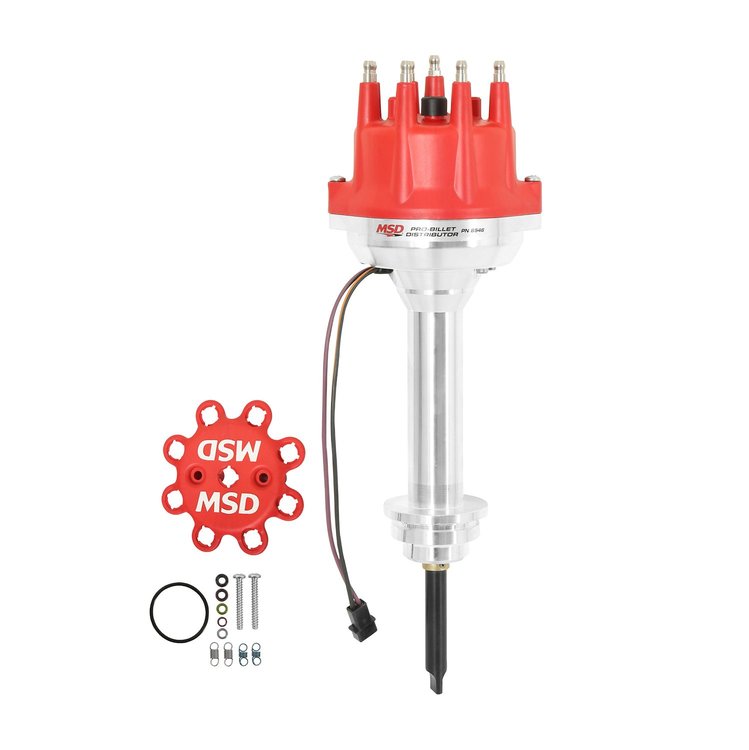

8546 Pro-Billet Small Cap Distributor Chrysler 426-440 Red
InfoVehicle Info Needed
MSD IGNITIONPART NUMBER: 121-8546

8546 Pro-Billet Small Cap Distributor Chrysler 426-440 Red

$47895
5 left in stock
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

Chrysler
Pro-Billet Small Cap Distributor
  • Chrysler 426-440
  • Red

    • Must be used with MSD 6, 7 or 8-Series Ignition
    • Must be used with an MSD Ignition Control Supplied with small diameter cap with HEI style terminals and race rotor (will accept 121-8441 Cap-A-Dapt)
    • Nylon pads ensure smooth operation of the advance weights
    • Advance weight pins are staked and tig welded to the plate
    • Mechanical advance assembly can be locked out for crank trigger systems
    • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
    • Polished steel shaft is QPQ coated and guided by two sealed ball bearings
    • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
    • Easy-to-adjust mechanical advance with supplied springs and stop bushings

    Emissions Note:

    This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number D-40-39.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • MSD has the Best Distributor for Your Vehicle

      MSD Billet and Pro-Billet Distributors with CNC-machined billet aluminum housings have maintenance-free magnetic pickups guided by a sealed ball bearing located at the top of the housing.

      Show More

      For drivers who demand performance, precision, and reliability, the MSD Billet & Pro-Billet Distributors are the gold standard in ignition control. Whether you’re building a high-performance street machine or a dedicated race car, MSD delivers the spark accuracy and rugged construction you need to push your engine to the limit.

      Each MSD Pro Billet Distributor is CNC-machined from high-quality billet aluminum for maximum strength and minimal flex, even at high RPMs. The polished housing isn’t just for looks—it’s built to last, resist corrosion, and endure extreme engine conditions. Inside, a maintenance-free magnetic pickup provides accurate trigger signals, while a hardened steel shaft with a sealed ball bearing ensures long-lasting performance.

      The Pro Billet Distributor MSD lineup is compatible with MSD ignition controls and features an easy-to-adjust mechanical advance, making tuning a breeze. Whether you're dialing in timing for the street or strip, you’ll get consistent spark delivery and smoother acceleration across the power band.

      If you're upgrading a small block Chevy, the MSD Pro Billet Distributor SBC is a perfect match, offering drop-in compatibility and serious performance gains. These distributors are designed to meet the needs of racers and enthusiasts who won’t settle for stock performance.

      Step up your ignition system with the proven power and reliability of MSD Billet and Pro-Billet Distributors—engineered to ignite your build's full potential.

      Whether you’re working on a high performance race car or a daily driver street machine, precise and durable ignition components are always going to be a real must. An MSD billet or Pro-Billet distributor is a distinct upgrade from your OEM distributor setup, with accurate spark delivery and durable, rugged construction that will let you really push the envelope of your engine’s performance.

      Performance Benefits & Key Features

      Every MSD Billet distributor is machined from top grade billet aluminum and a hardened steel shaft, with maintenance-free magnetic pickups for accurate and consistent ignition signal, and a precision ball bearing set with long sintered bushing guide at the top of the housing. The polished housing looks great, but it’s more than just a dress-up feature; it’s designed to resist corrosion and to hold up under some of the most extreme engine conditions.

      The Pro-Billet and MSD Billet lineup at JEGS is designed for compatibility with other MSD ignition components, with a mechanical advance that’s easy to adjust to dial in the timing you need on the strip or street. It’s easy to adjust it to your setting and you’ll get reliable spark delivery and stronger, smoother acceleration across the power band. For older applications, select MSD Billet distributors are equipped with vacuum advance.

      Fitment, Compatibility & Applications

      For small block Chevrolet applications, MSD’s Billet and Pro-Billet distributors are designed for drop-in installation. Distributor setups are available for small block and big block Chevrolet V8s, AMC V8s, Buick (including Nailhead V8s), Cadillac, small block and big block Ford engines, Ford flathead V8s, and big block and small block Chrysler (including first-gen Hemi V8s). Along with distributors, this is your one-stop-shopping destination for full ignition upgrade packages from MSD, including the distributor, cap, coil, coil wire, plug wires, as well as a digital 6AL ignition control box for later model Chevrolet small block applications.

      Plug wires are standard 8.5mm size and can be cut to fit your desired length, and of course MSD’s iconic red hardware and plug wires look great under the hood of any car. Regardless of what kind of vehicle you’re driving and what kind of V8 it’s equipped with, an MSD Billet distributor or a full ignition upgrade of MSD components is a great way to squeeze a little more performance, response and dependability out of your setup.

    Part TypeDistributor
    Product LineMSD Billet & Pro-Billet Distributors
    BrandMSD IGNITION
    Package Height6.9
    Package Width7.1
    Package Length18.0
    Weight4.92 PG
    Part CategoryPerformance Parts
    Marine UseNo
    Housing FinishNatural
    Housing MaterialBillet Aluminum
    Distributor Cap ColorRed
    Ignition Box RequiredYes
    QuantitySold individually
    Distributor TypeHEI/Breakerless
    Engine Make/SizeMopar 426, Mopar 440
    Computer-Controlled CompatibleNo
    Trigger StyleMagnetic
    Distributor Gear RotationStandard
    Cap StyleMale/HEI
    Part FitmentSemi Universal
    Slip CollarNo
    Mechanical Tach DriveNo
    Advance TypeMechanical
    Vendor Part Number8546
    Package Qty1
    Package TypeEA
