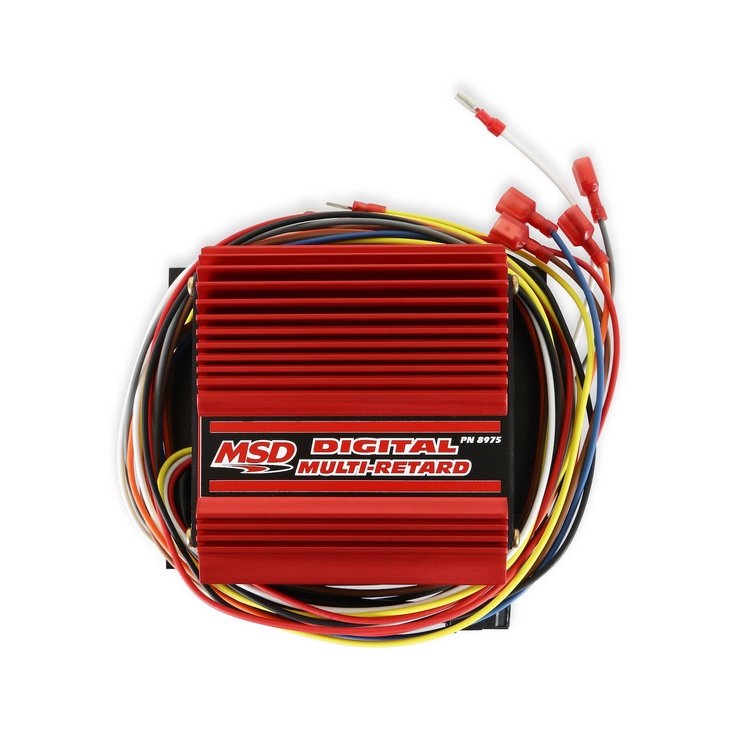

    Digital Multi-Retard Electronic Timing Control

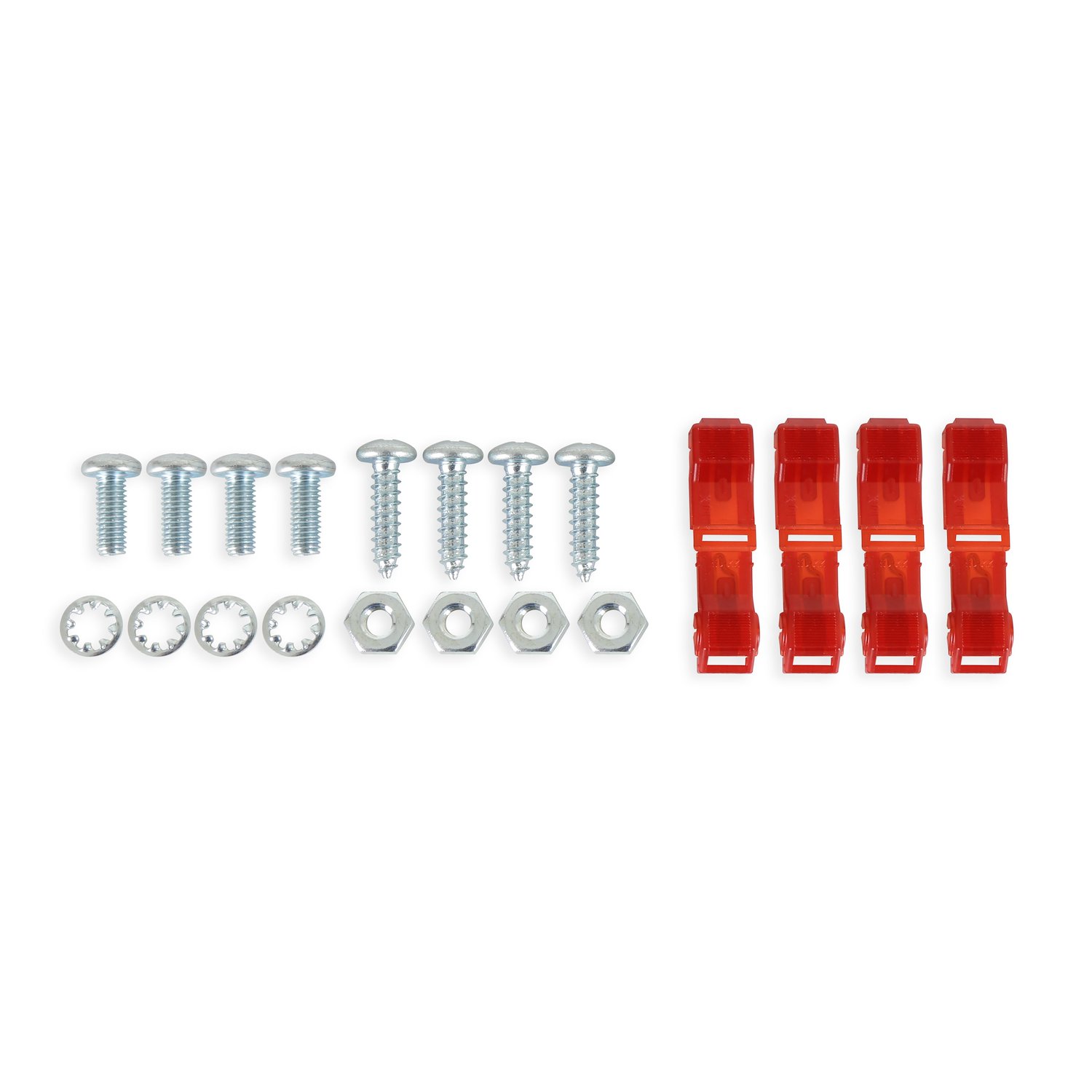

  • Includes (4) Mounting Screws

    Notes:
  • Can be used on 4, 6, or 8-cylinder engines
  • Must be used with an MSD Ignition Control
  • Not legal for sale or use on pollution-controlled vehicles
  • Four stages of retard
  • Magnetic pick-up compensation circuit
  • Adjustable start retard

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

MSD's Digital Multi-Retard eliminates the need for a module by using a high speed RISC micro-controller to direct the timing functions while allowing for (4) different stages of retard and an adjustable start/retard feature for easier starting. This RISC processor can make extremely quick adjustments to the timing signals while still keeping accuracy to within 1°. These circuits are thoroughly debounced and isolated for protection against Electro-Magnetic Interference (EMI). There is also a Magnetic Pickup Compensation circuit added to allow perfect timing with a variety of magnetic pickup triggers. The Multi-Retard is perfect for multi-stage nitrous applications, and each stage can be activated independently or together for a total sum of retards. Each stage is adjustable from 0°-9° and the maximum amount of retard is 20°. The unit can be programmed for 5°, 10°, 15° or 20° of retard during starting.

Show More

Features:

  • (4) stages of retard
  • Magnetic pick-up compensation circuit
  • Adjustable start retard
  • Great for nitrous use

Notes:

  • Can be used on 4, 6, or 8-cylinder engines
  • Must be used with an MSD Ignition Control
  • Not legal for sale or use on pollution-controlled vehicles
Part TypeTiming Control
Product LineMSD Digital Multi-Retard
BrandMSD IGNITION
Package Height3.2
Package Width6.5
Package Length6.6
Weight1.86 PG
Part CategoryPerformance Parts
Controller ActivationProgrammable
Controls Ignition AdvanceNo
Ignition Box RequiredYes
QuantitySold individually
Part FitmentSemi Universal
Compatible With Multiple Coil IgnitionsNo
CircuitryDigital
Controls Ignition RetardYes
AdjustableYes
Adjustment StyleRotary dial
Vendor Part Number8975
Package Qty1
Package TypeEA
