![High-Powered LED Headlight Assembly [Jeep Wrangler JL]](https://www.jegs.com/images/mini_750/100/188/188-5769j-504.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Gladiator JT, Wrangler JL

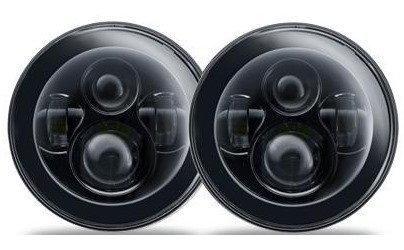

High-Powered LED Headlight AssemblyJeep Wrangler JL 7 in Round Headlights Pair
Features
- Improved Brightness, Reliability, Efficiency, and Visibility
- Die-Cast Housing with Corrosion Resistant Coating
- Hard-coated Polycarbonate Lens
- DOT and SAE Certified
- Vertical and Horizontal Headlight Adjustment
- Heavy Duty Solid-State Electronics
- Wide Beam Pattern with Sharp Cut-Off Line
- Halo Rings Pre-Installed
- Phillips Luxeon ZES Chips for Premium Performance
- Low Thermal Output
- Luminous Efficacy: 130 lm/W ratio
- Low Beam Wattage: 30 W Normal / 36W Max
- Low Beam Light Output: 2200 Lumens / 3600 Raw Lumens
- High Beam Wattage: 40 W Normal / 48 W Max
- High Beam Light Output: 3600 Lumens / 4800 Raw Lumens
- Color Temperature: 6000K for Cool White Color
- Input Voltage of Light: 12-24 VDC
- Current Draw: 2.50 Amps @ 12 VDC / 1.30 Amps @ 24 VDC
Includes
- (2) 7 in. High Performance LED Headlights w/White Halos Installed
- (2) Wrangler JL-specific Plug & Play Wiring Adapters
- (2) Direct-Fit Beam Adjustable Headlight Brackets
Part TypeHeadlight Assembly
BrandORACLE LIGHTING
Package Height10.8
Package Width14.5
Package Length20.1
Weight10.21 PG
Part CategoryAccessories
Bulb TypeLED
Housing MaterialAluminum
Housing ShapeRound
Sae/Dot CompliantYes
QuantitySold as a kit
Direct FitYes
Lens MaterialPolycarbonate
Headlight StyleLED
Jeep Jl1
Voltage12-24V
Headlight ShapeRound
Lens ColorClear
Part FitmentDirect Fit
Diameter7 in (177.8 mm)
Vendor Part Number5769J-504
Package Qty1
Package TypeEA
