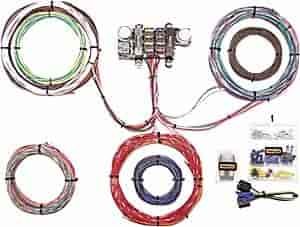

18-Circuit Modular T-Bucket Wire Harness

Name: 18-Circuit Modular T-Bucket Wire Harness
Brand: PAINLESS PERFORMANCE PRODUCTS
SKU: 764-10308
Price: 283.99 USD
Availability: InStock

^$283⁹⁹

3 left in stock

Ships Tomorrow

Lowest Price Guarantee

Best Value

555-10405

Universal Wiring Harness 20-Circuit with Fuse Block

^$328⁹⁹

18-Circuit Modular T-Bucket Harness

Harness Includes These Circuits:

Engine section wires including battery B+, alternator B+, alternator field exciter, coil ignition B+, tachometer/coil-, temperature sender, oil pressure sender, electric choke.
Starter solenoid section crank signal wire.
Headlight section wires including high & low beam headlight, front left & front right turn, front park lights, horn, and cooling fan relay activation wire.
Headlight switch section wires including power to headlight switch, power out to park lights, tail lights, power out to gauge illumination and headlight dimmer switch.
Turn signal switch wires including power into switch from flasher, power out to front/rear left/right turn signals, horn button activation and into emergency flasher switch.
Ignition switch section wires including B+ power into switch, power out to fuseblock ignition, power out to fuseblock accessory, power out to coil and crank signal to starter solenoid.
Tail section wires including left/right turn, left/right park, brake light and fuel sender.
Instrument panel section wires including gauge power, gauge illumination, and signal wires for fuel, temp, oil, voltage, tachometer and indicator wires for left/right turn and high beam headlight.
Accessory switch section wires including wiper switch power, radio B+ and ignition hot and cooling fan switch power and output.
Also included in kit is a fuseblock mounting bracket, rubber grommet, 4 inch zip ties, 70 Amp maxi fuse and a large assortment of crimp style connectors.
