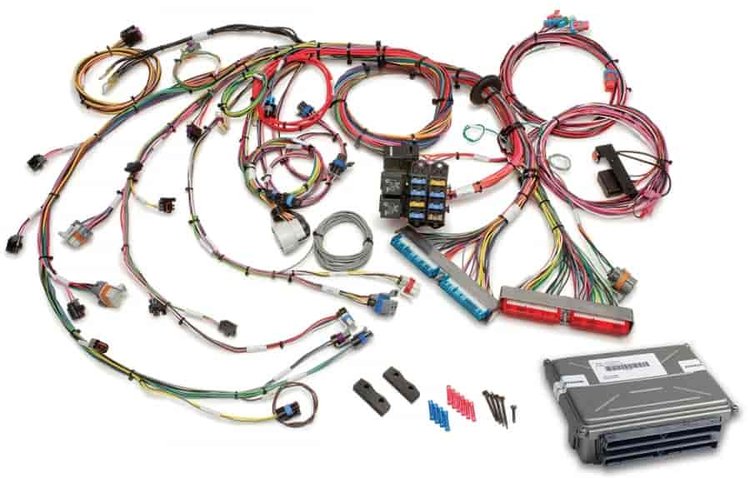

This Painless harness set comes complete with a 764-60508 standalone harness and a 764-60717 0411 engine control module (ECM). The standalone harness is for installing a mechanical throttle body on a GM LS1 / LS6 engine with a 4L60E or T-56 transmission, typically factory equipped in 1998-2002 Chevy Camaro 5.7L. The ECM has the vehicle anti-theft system (VATS) removed and is loaded with a base LS1 Camaro/Manual Transmission tune (requires additional tuning).

Note: Do not replace the OEM engine wiring with this harness.

The Fuse Block Protects The Following Circuits:

• DLC B+
• Driver Side Injectors and Coils
• Dual 40 amp Ignition Relays
• Fuel Pump
• Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch
• Pass Side Injectors and Coils
• ECM and Malfunction Indicator Lamp
• ECM B+
• Transmission

This harness includes connections for the following components:

• Alternator
• Brake Switch
• Cam Position Sensor
• Crank Position Sensor
• Data Link Connector
• Driver/Pass Front O2 Sensors
• Engine Coolant Temperature
• Fan #1 Relay Ground ECM Activation
• Fan #2 Relay Ground ECM Activation
• Fuel Pump
• Fuel Pump Relay
• Fuel Pump Test
• Gear Indicator Switch
• Grounds
• Idle Air Control
• Ignition Coils
• Ignition Switch Signal
• Injectors
• Intake Air Temperature Sensor
• Knock Sensors
• Malfunction Indicator Lamp
• MAP Sensor
• Mass Airflow Sensor
• ECM
• Reverse Lockout Solenoid
• Skip Shift Light
• Skip Shift Solenoid
• Starter
• Tachometer
• Throttle Position Sensor
• Transmission
• VATS
• Vehicle Speed Sensor
• VSS Output for Speedometer
