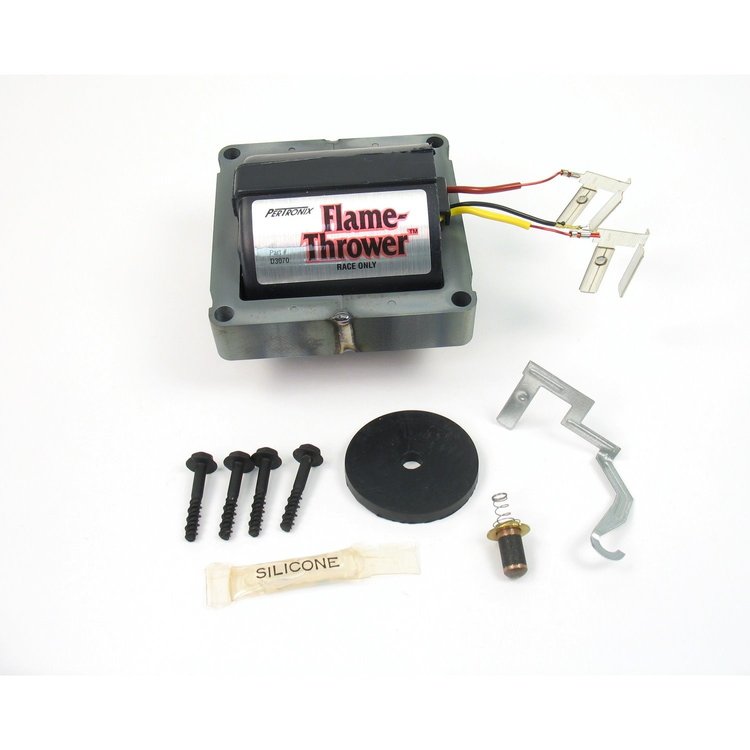

Flame-Thrower Race Only E-Core HEI Coil GM
InfoVehicle Info Needed
PERTRONIXPART NUMBER: 751-D3070

Flame-Thrower Race Only E-Core HEI Coil GM

$9936
6 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Spark Guard Dielectric Grease Resealable Container

MSD IGNITION

Spark Guard Dielectric Grease Resealable Container

Part Number : 121-8804
$4159$46.21
You Save$4.62

Flame-Thrower E-Core HEI Coils
  • GM
    • Flame-Thrower Race Only E-Core HEI Coil
    • GM
    • 50,000 Volts
    • 0.35 ohm
    • Internal Mount
    • Carb Approved D-57-21

      Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
      Pertronix Flame-Thrower E-Core Coils feature optimized winding design to maximize spark gap current and availble voltage. When teamed with Flame-Thrower Ignition Modules they produce 100% more energy accros the spark plug gap compared to the OEM coil.

      Features:
    • 50,000 Volts
    • Ultra low primary resistance values
    • Legal in all 50 states and Canada (C.A.R.B. # D-57-21)
    Part TypeIgnition Coil
    Product LinePertronix Flame-Thrower E-Core Coils
    BrandPERTRONIX
    Package Height4.4
    Package Width4.5
    Package Length4.5
    Weight1.7 PG
    Part CategoryPerformance Parts
    Carb Eo NumberD-57-21 (pdf)
    Primary Resistance0.350 ohms
    Coil Wire AttachmentHEI in-cap
    Coil StyleIn-cap
    QuantitySold individually
    Overall Length3.08 in (78.2 mm)
    Ballast Resistor IncludedNo
    Maximum Voltage50,000 V
    Turns Ratio85:01:00
    Peak Current7.9 amps
    Coil ShapeSquare
    Title (Custom)PerTronix D3070 Flame-Thrower HEI Race Coil GM 50,000
    Mounting Bracket IncludedNo
    Inductance2.8 mH
    Coil ColorBlack
    Coil Wire IncludedNo
    Spark Duration1.5 mS
    Product Height2.44 in (61.976 mm)
    Secondary Resistance8.3K ohms
    Part FitmentSemi Universal
    Coil Internal ConstructionEpoxy
    Product Width3.08 in (78.232 mm)
    Vendor Part NumberD3070
    Package Qty1
    Package TypeEA
