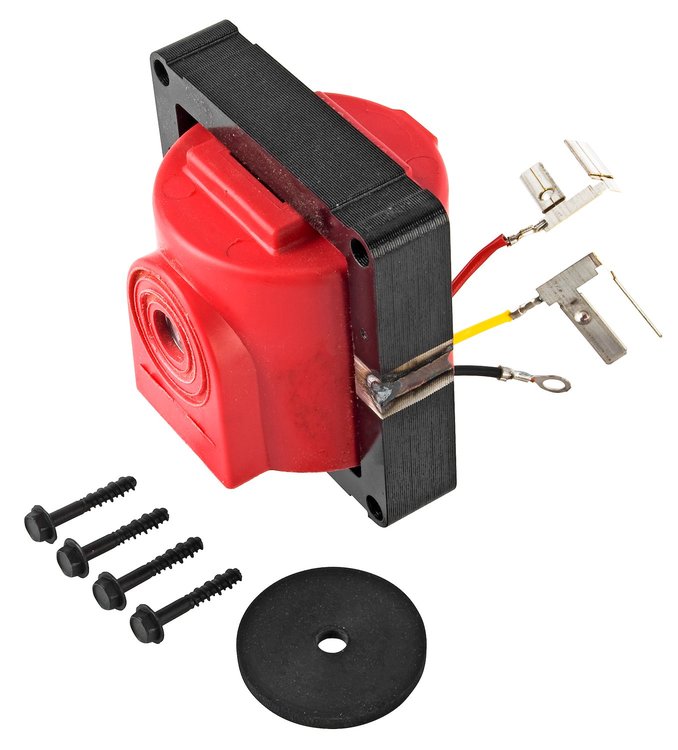

HEI Coil Red Housing
InfoVehicle Info Needed
JEGSPART NUMBER: 555-40115

HEI Coil Red Housing

$3199$34.49You Save$2.50
ShippingShips on May 21, 2027
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

HEI Coil
    HEI Coil
  • 42,000 Volt Output
  • Red Housing
  • Red & Yellow Primary Wires
  • Sold Individually

  • Designed to be used with original gm coil-in-cap hei systems, as well as aftermarket ignition systems
  • Capable of 38% more voltage output than oe
  • Compatible with distributors that have red and yellow primary wires
  • Simple installation without the need to remove the distributor from the engine
  • Red housing for great looks

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeIgnition Coil
BrandJEGS
Package Height4 in (101.6 mm)
Package Width3.3
Package Length5.1
Weight1.74 PG
Part CategoryPerformance Parts
Carb Eo NumberN/A
Primary Resistance0.600 ohms
Coil Wire AttachmentHEI in-cap
Coil StyleIn-cap
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage42,000 V
Turns Ratio70:01:00
Peak Current200 mA
Coil ShapeSquare
Mounting Bracket IncludedNo
Inductance3.5 mH
Coil ColorRed
Coil Wire IncludedNo
Spark Duration200 uS
Secondary Resistance8.9K ohms
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Diameter3 in (76.2 mm)
Package Qty1
Package TypeEA
No Questions
No Reviews
