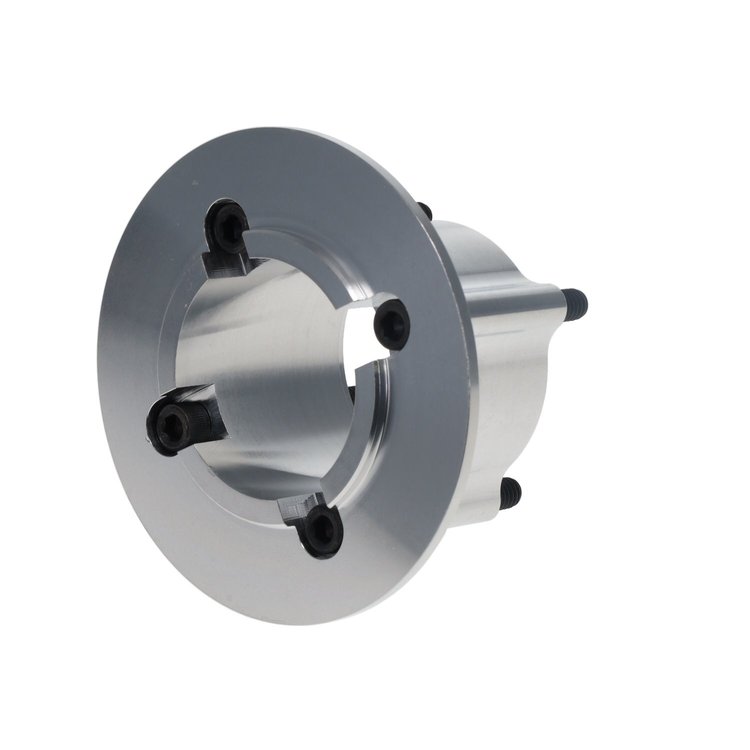

The Peterson Fluid Systems 14-2202 R4 V-band pump mount provides a dedicated interface between ProCharger CrankDrive accessory drives and V-band ready R4 oil pumps, simplifying packaging and maintaining accurate pump alignment in high-power supercharged applications.

Peterson Fluid Systems 14-2202 Features:

• CNC-machined from 6061-T6 billet aluminum for strength and low weight.
• Interfaces V-band mount R4 oil pumps to ProCharger CrankDrive accessory drives.
• Compatible with both 3/8 in. hex and 5/8 in. round CrankDrive accessories.
• Designed to work with standard and reverse-rotation R4 pumps that use a front pressure section.
• Manufactured and machined in-house for tight dimensional and alignment control.

Peterson Fluid Systems 14-2202 Includes:

• R4 V-band pump mounting plate.
• Hardware kit for attaching the pump to the mount.

Peterson Fluid Systems 14-2202 Notes:

• V-band clamp is not included and must be sourced separately.
• Supports V-band ready R4 pump family including 04-1096, 04-1496-HEX, 04-2096, 04-2096-HEX, 04-2496-HEX, 04-5096, 04-5096-HEX, and 04-6096-HEX.
