Vehicle Info NeededPROFORMPART NUMBER: 778-67202K1

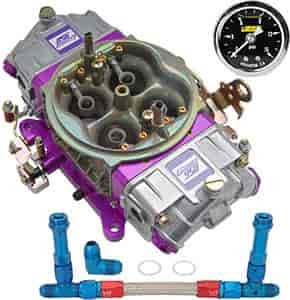

Race Series 950 CFM Drag Race Gasoline Carburetor Kit w/Blue/Red -8AN Dual Feed Fuel Line and Gauge
$80493
2 left in stock
Ships Today
Lowest Price GuaranteeDrag Racing-Gasoline
- Race Series Mechanical Secondary Carburetor Kit
- 950 cfm Mechanical Secondary Carb
- Black Face 15 psi Gauge
- Blue/Red Dual Feed Line
Kit Includes: - Proform 950cfm Race Series Carburetor - 778-67202
- JEGS Black Face Fuel Pressure Gauge 15 psi - 555-41010
- JEGS Blue/Red Dual Inlet Fuel Line Kit - 555-100825
Includes:
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCarburetor
BrandPROFORM
Primary Power Valve (Hg)4.5 Hg
SweepFull sweep
ChokeNone
Carburetor Height3.25 in (82.55 mm)
Outlet Quantity2
Bezel FinishStainless steel
Primary Outer Air Bleed Sizes Included70
Gauge PortYes
Gauge Number ColorWhite
Inlet QuantityOne
Fuel Filter IncludedNo
Secondary Inner Air Bleed Sizes Included33
Liquid-FilledYes
Carburetor Type4150 Style Square Flange
Primary Jet Size79
Primary Inner Air Bleed Sizes Included33
AdjustableNo
Pointer ColorWhite
Outlet AttachmentMale Threads
Secondary Jet Size88
Fuel Line TypeBraided Line
Oem ReplacementNo
Fuel Line Inlet Size-8 AN
Part CategoryPerformance Parts
Sending Unit IncludedNo
Primary Discharge Nozzle Size0.033 in (0.8 mm)
Gauge Size (Mm)38.10 diameter
Gauge Face ColorBlack
Fuel InletDual
Cfm950
Supercharged ApplicationNo
Maximum Center To Center DistanceN/A
Gauge StyleJEGS
Gauge Range0-15 psi
Return Fitting Size-8 AN
Booster TypeDown-leg
Secondary TypeMechanical
Gauge TypeFuel Pressure
Sending UnitMechanical
Return AttachmentMale
UsageDrag Racing
Outlet Size7/8"-20
Carburetor FinishPolished
QuantitySold as a Kit
BarrelFour
Fuel Line FinishBlue/Red
Inlet AttachmentMale Threads
Gauge Size (In.)1 1/2 diameter
Secondary Outer Air Bleed Sizes Included70
Secondary Discharge Nozzle Size0.033 in (0.8 mm)
Minimum Center To Center DistanceN/A
FuelGasoline
Part FitmentUniversal
Package Qty1
Package TypeEA
