183 Series Aluminum Cylinder Heads Small Block Chevy Straight Plug
InfoVehicle Info Needed
PROMAXX PERFORMANCEPART NUMBER: 723-9183

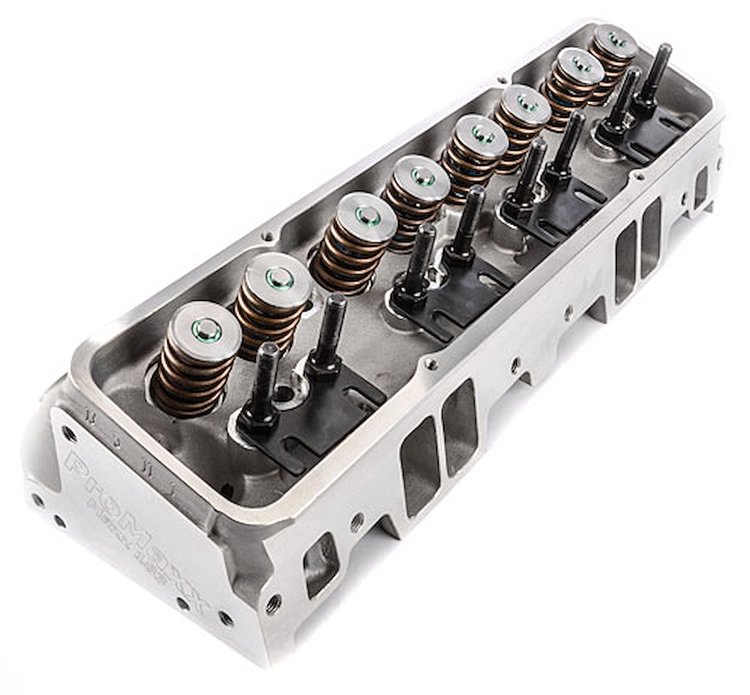

183 Series Aluminum Cylinder Heads Small Block Chevy Straight Plug

$1,19900
5 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

183 Series Intake Port Volume
  • 64cc Combustion Chambers
  • Straight Spark Plug Configuration
  • 183 Series Aluminum Cylinder Heads
  • Small Block Chevy
  • As-Cast
  • D-Port
  • 183cc Intake Ports
  • 64cc Combustion Chambers
  • 2.02'' Intake / 1.60'' Exhaust Valves
  • 3/8'' Rocker Arm Studs
  • .575" Max Lift
  • Steel Retainers
  • Assembled, 2/pkg

    Additional Cylinder Head Specifications

    • Valve Angle: 23°
    • Valve Seal Material: Viton
    • Spark Plug Configuration: Straight
    • Maximum Spring Lift: .575" Hydraulic Flat Tappet Springs
    • D-Port

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

  • Maxx Quality, Performance and Affordibility!

    The ProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. Even the ''as cast'' heads utilize ultra-smooth new runner and chamber designs that produce ''CNC'd type'' flow numbers. While creating the 100% CNC Ported MAXX series, Many long hours on the flow bench were invested for one of the best flowing out-of-the-box cylinder heads available at the best price. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending, and professional assembly to outperform the best brands in the business.

    Show More

    Features:

    • A356-T6 Aluminum Castings
    • Hand Bowl Blending
    • Efficient Chamber Design
    • Straight or Angled Spark Plug Configurations Available
    • Available 'Bare' or 'Assembled'
    • 5-Angle Competition Valve Job
    • Diamond-Honed Bronze Guides
    • ''MAXX'' Power for Street or Strip
    • Sold in Pairs, 2/pkg.

      JEGS EZ Kits are designed by JEGS professionals to ensure that you get all the correct parts you need.

    Part TypeCylinder Head
    Product LineProMaxx MAXX Series Small Block Chevy Aluminum Cylinder Heads
    BrandPROMAXX PERFORMANCE
    Package Height10.0
    Package Width12.0
    Package Length21.0
    Weight55.95 PG
    Part CategoryPerformance Parts
    Cylinder Head MaterialAluminum
    Maximum Valve Lift0.575 in (14.605 mm)
    Combustion Chamber Volume (Cc)64
    Cylinder Head StyleAssembled
    Part FitmentSemi Universal
    Intake Runner Volume (Cc)183
    Engine Make/SizeChevy Small Block
    Vendor Part Number9183
    Package Qty1
    Package TypeEA
