Vehicle Info NeededPYPES PERFORMANCE EXHAUSTPART NUMBER: 958-HVE10K
Electrical Exhaust Cutout Kit Dual Exhaust
$60779
8 left in stock
Ships Today
Lowest Price GuaranteeElectrical Exhaust Cutout Kits With Y-Pipes

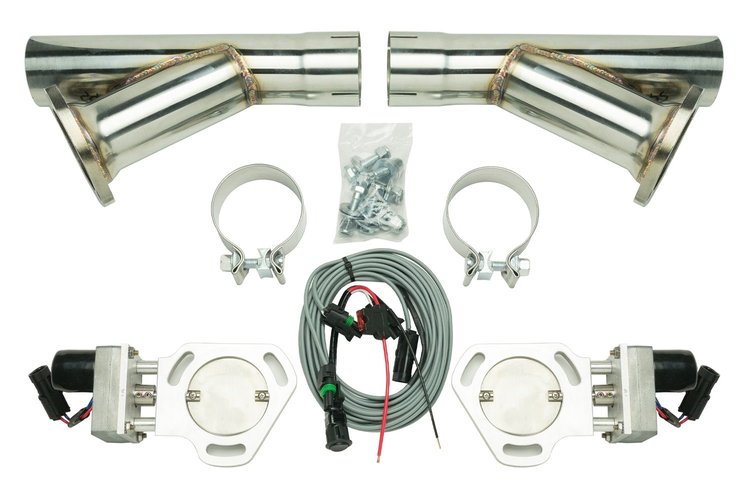

Electrical Exhaust Cutout KitDual Exhaust Fits 2.5" Diameter Exhaust Pipe Includes Cutouts, Y-Pipes, Wiring Harness, Switch, Gaskets and Hardware
Pypes Performance Exhaust HVE10K Features:
This electric dump option can connect to any 2.5 inch exhaust system with an approximate 12 inch straight section and enough clearance for the motor/valve assemblies. Pypes Performance Exhaust systems and accessories are fabricated using stainless steel materials that will provide their owners with long term service and satisfaction and Pypes products are backed by our limited lifetime warranty!Features:Size: 2.5 InchWiring and switch is includedAt The Track Open Them Up For Full Flow And Extra 10-15 HPAt The Stop Light Open Them Up - Check Local Noise OrdinancesCNC Machined Billet AluminumHigh Quality MotorMade In The USASold As: Kit5 Year WarrantyEmissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
PYPES Electric Exhaust Cutouts allow you to open your exhaust with a flip of a switch. In no time 10-15 extra hoursepower will be at your disposal.
Cutout Assembly:
- Housing is manufactured from 6061-T6 billet aluminum and machined down to .600" thick to ensure flatness
- .125" aluminum butterfly
- Double sealed butterfly to ensure no leaks
- "Bull Nose" butterfly seals in matching "Bull Nose" seat.
Show More
- High temp o-ring to ensure complete seal
- Motor units are gear reduced to allow positive seal
- Housing is CNC machined to insure positive seal to "Y" pipe
- Stainless steel shafts
- Stainless steel coupler
- Stainless steel hardware
- Proven dependable gear reduction drive motor
- Extra thick gasket which seals better as wells as helps insulate against heat
- Slotted mounting bolt holes for flexibility in mounting position
- High Quality stainless steel mounting bolts and nuts
- Built In Thermal Protection device to protect motor from overload Harness:
- Weather tight connectors on all outside connections
- 5 amp quick blow fuse built into harness
- 16 ga. heavy duty heat resistant wire
- Labeled positive and negative leads for ease of installation Y-Pipe:
- Polished 304 stainless steel
- Availble in 2.25", 2.5", & 3" diameters
- 12" Long
- Cutout fits standard 3" collector flange
Part TypeExhaust Cutout
Product LinePYPES Electric Exhaust Cutouts
BrandPYPES PERFORMANCE EXHAUST
Package Height5.3
Package Width8.7
Package Length17.7
Weight12.45 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Tip IncludedNo
Muffler SeriesN/A
QuantitySold as a kit
MaterialAluminum
Exhaust Cutout InstallationBolt-on
Exhaust Cutout FinishNatural
Exhaust Cutout MaterialAluminum
Tubing Diameter2.5 in (63.5 mm)
Part FitmentUniversal
Exhaust Cutout StyleElectric
FinishNatural
Vendor Part NumberHVE10K
Package Qty1
Package TypeEA
