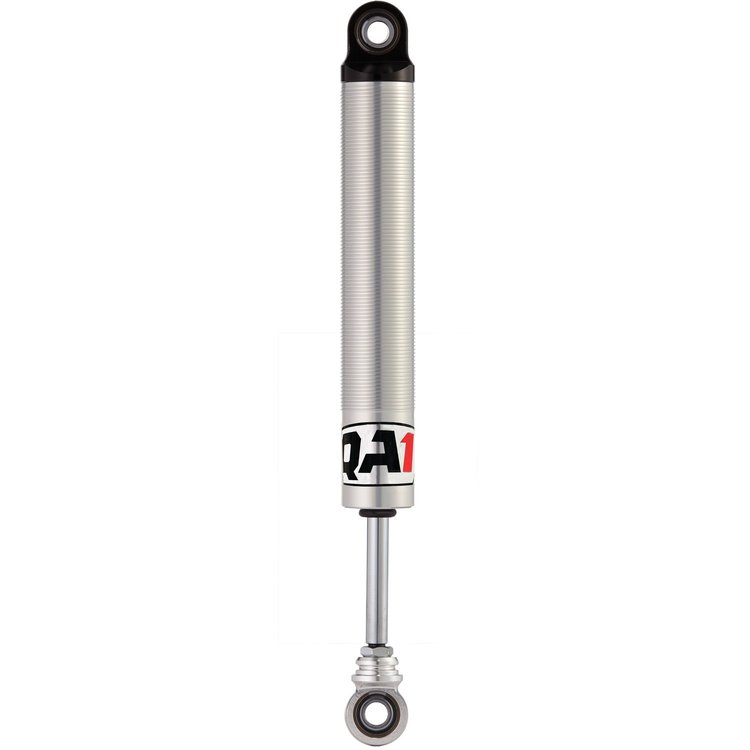

5" Stroke
- Aluminum Small Body Shock
- Valving (Comp-Rebound): 2-2
- Compressed Length: 10.38"
- Extended Length: 15.75"
SHOCK SML ALUM C-O 10.38, -15.75 EYE-B/EYE-B V2-2
QA1's 82 Series shock is just like the large body twin tubes, but smaller. Every internal component is of the same design as the large body shocks, just scaled down. The 1-5/8" outside body diameter allows these shocks to fit where large bodies cannot fit.
Show More
Features:
- Small Body
- Racer Revalvable and Rebuildable
Have 10 minutes? That's all it takes. Easy-to-follow instructions can give you the performance edge. - Premium Aluminum Piston
Incorporates dual bleed circuits for standard or custom valvings, including extreme split valvings. - Premium Aluminum Base Valve
Tuneable to standard or custom valvings. - Non-Fading
QA1 uses a premium proprietary blend of specially engineered oil to prevent fade. - 1/2" Centerless Ground, Hard Chrome Plated, Solid Piston Rod
Precision surface eliminates piston rod flex, increasing valving consistency. - Deflective Disk Valving
Damping curve allows for complete control of suspension at low shaft speeds without creating extreme forces at high shaft velocities. - Twin Tube Design
The outer tube can get dented without binding the shock. - 1-5/8" OD Lightweight Aluminum Body
Over 10% lighter than the market leader's small body aluminum shocks! 40% lighter than full size shocks! Forged 6061-T6 aerospace quality aluminum, machined for longevity and strength. - Can be Run Upside Down
Can be mounted upside down with no change in rate to reduce unsprung weight. - Replaceable 1/2" ID Bearings
- 100% Dyno Tested and Serialized
Part TypeShock Absorber
Product LineQA1 Aluminum Twin Tube Small Body Shock - 82 Series
BrandQA1
Package Height2.4
Package Width4.0
Package Length18.1
Weight2.15 PG
Part CategoryPerformance Parts
Adjustable ValvingNo
Hardware IncludedNo
Coil-Over Springs IncludedNo
Gas ChargedNo
Bushing ColorNatural
Bushing MaterialSpherical bearing
Adjustable Mounting Bracket IncludedNo
QuantitySold individually
Lower MountBearing
Shock Body FinishNatural
Upper MountBearing
Shock Body MaterialAluminum
Recommended Spring Diameter1.875 in (47.6 mm)
Body Diameter1.625 in (41.275 mm)
Extended Length15.75 in (400.05 mm)
Coil-Over Shock TypeNon-adjustable
Part FitmentSemi Universal
Collapsed Length10.38 in (263.652 mm)
Internal DesignTwin-tube
Vendor Part Number8252
Package Qty1
Package TypeEA
