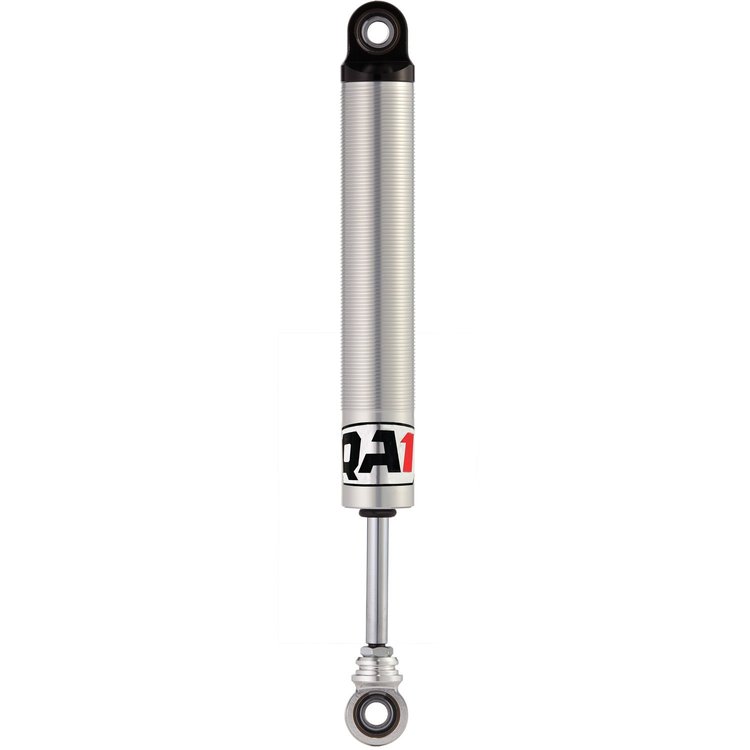

Made in USA
Aluminum Small Body Shock Valving (Comp-Rebound): 4-5
Product Discontinued
QA1PART NUMBER: 122-8254-5

Aluminum Small Body Shock Valving (Comp-Rebound): 4-5

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

5" Stroke
    Aluminum Small Body Shock
  • Valving (Comp-Rebound): 4-5
  • Compressed Length: 10.38"
  • Extended Length: 15.75"

    SHOCK SML ALUM C-O 10.38, 15.75 EYE-B/EYE-B V4-5

QA1's 82 Series shock is just like the large body twin tubes, but smaller. Every internal component is of the same design as the large body shocks, just scaled down. The 1-5/8" outside body diameter allows these shocks to fit where large bodies cannot fit.

Show More

Features:

  • Small Body
  • Racer Revalvable and Rebuildable
    Have 10 minutes? That's all it takes. Easy-to-follow instructions can give you the performance edge.
  • Premium Aluminum Piston
    Incorporates dual bleed circuits for standard or custom valvings, including extreme split valvings.
  • Premium Aluminum Base Valve
    Tuneable to standard or custom valvings.
  • Non-Fading
    QA1 uses a premium proprietary blend of specially engineered oil to prevent fade.
  • 1/2" Centerless Ground, Hard Chrome Plated, Solid Piston Rod
    Precision surface eliminates piston rod flex, increasing valving consistency.
  • Deflective Disk Valving
    Damping curve allows for complete control of suspension at low shaft speeds without creating extreme forces at high shaft velocities.
  • Twin Tube Design
    The outer tube can get dented without binding the shock.
  • 1-5/8" OD Lightweight Aluminum Body
    Over 10% lighter than the market leader's small body aluminum shocks! 40% lighter than full size shocks! Forged 6061-T6 aerospace quality aluminum, machined for longevity and strength.
  • Can be Run Upside Down
    Can be mounted upside down with no change in rate to reduce unsprung weight.
  • Replaceable 1/2" ID Bearings
  • 100% Dyno Tested and Serialized
Part TypeShock Absorber
Product LineQA1 Aluminum Twin Tube Small Body Shock - 82 Series
BrandQA1
Package Height2.25
Package Width4.0
Package Length18.25
Weight2.18 PG
Part CategoryPerformance Parts
Vendor Part Number8254-5
Package Qty1
Package TypeEA
