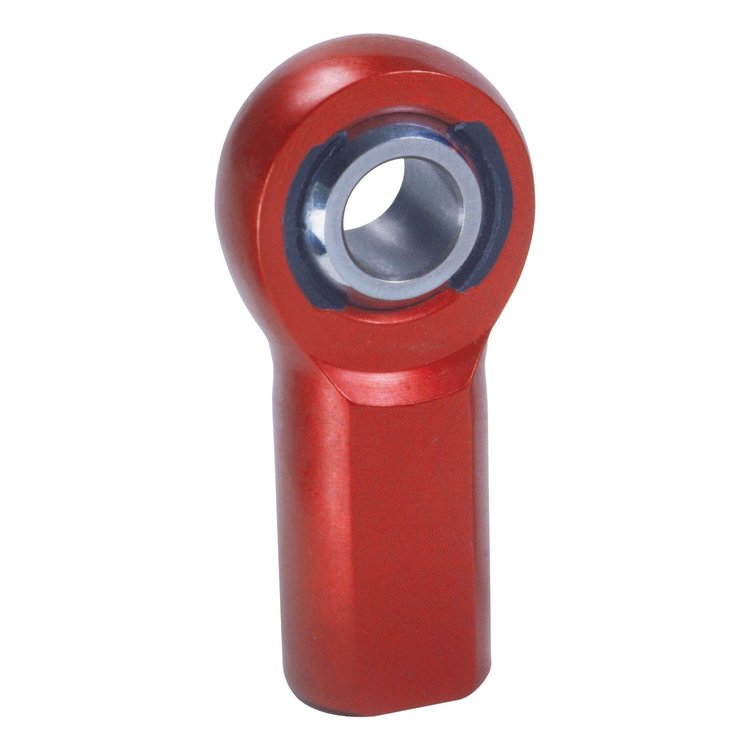

AF Aluminum Series Rod End Hole I.D.: .3125"

Name: AF Aluminum Series Rod End Hole I.D.: .3125"
Brand: QA1
SKU: 122-AFL5
Price: 12.08 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

AF Aluminum Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height0.43

Package Width0.87

Package Length1.81

Weight0.04 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishRed anodized

Thread Length0.75 in (19.1 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)5/16-24 LH

QuantitySold individually

Rod End Centerline Length1.375 in (34.9 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)2,780

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAFL5

Package Qty1

Package TypeEA
