QA1PART NUMBER: 122-AFR3

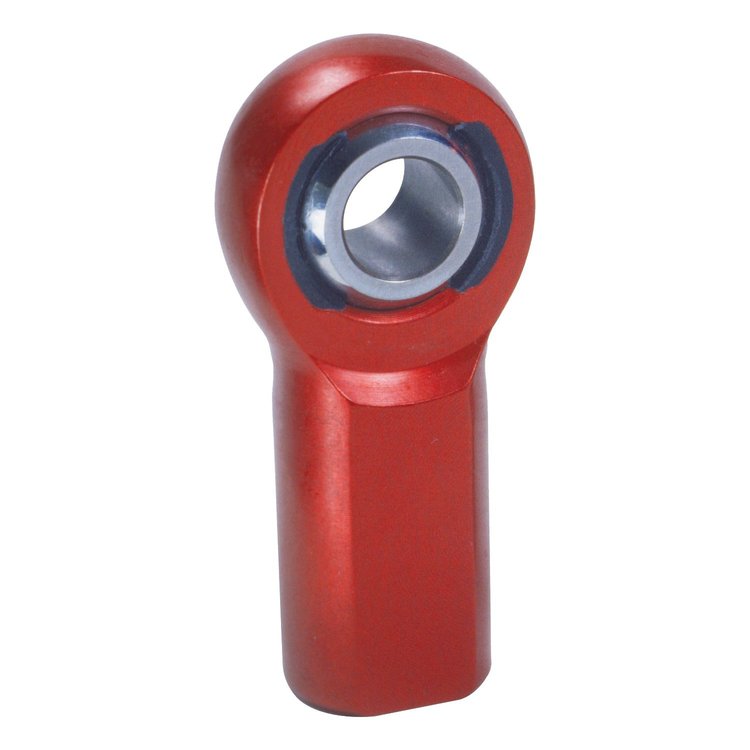

AF Aluminum Series Rod End Hole I.D.: .1900"

Name: AF Aluminum Series Rod End Hole I.D.: .1900"
Brand: QA1
SKU: 122-AFR3
Price: 7.99 USD
Availability: InStock

^$7⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

AF Aluminum Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height1.0

Package Width1.0

Package Length2.0

Weight0.02 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishRed anodized

Rod End Thread Size10-32 RH NF

Thread Length0.562 in (14.3 mm)

Rod End Head Bore Size0.19 in (4.8 mm)

QuantitySold individually

Rod End Centerline Length1.062 in (27 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)13 degrees

Rod End Head Diameter0.625 in (15.9 mm)

Rod End Ball Width0.312 in (7.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.312 in (7.9 mm)

Rod End Static Load Capacity (Lbs.)1,453

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAFR3

Package Qty1

Package TypeEA
