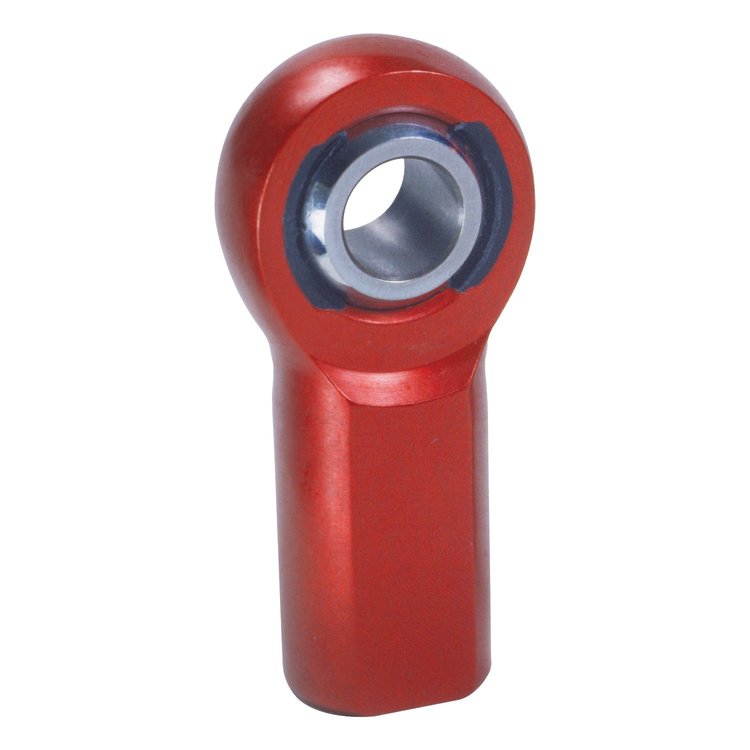

QA1PART NUMBER: 122-AFR4

AF Aluminum Series Rod End Hole I.D.: .2500"

Name: AF Aluminum Series Rod End Hole I.D.: .2500"
Brand: QA1
SKU: 122-AFR4
Price: 7.99 USD
Availability: InStock

^$7⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

AF Aluminum Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height1.0

Package Width1.0

Package Length3.0

Weight0.05 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishRed anodized

Thread Length0.75 in (19.1 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)1/4-28 RH

QuantitySold individually

Rod End Centerline Length1.312 in (33.3 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)16 degrees

Rod End Head Diameter0.75 in (19.1 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)2,363

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAFR4

Package Qty1

Package TypeEA
