QA1PART NUMBER: 122-AFR5

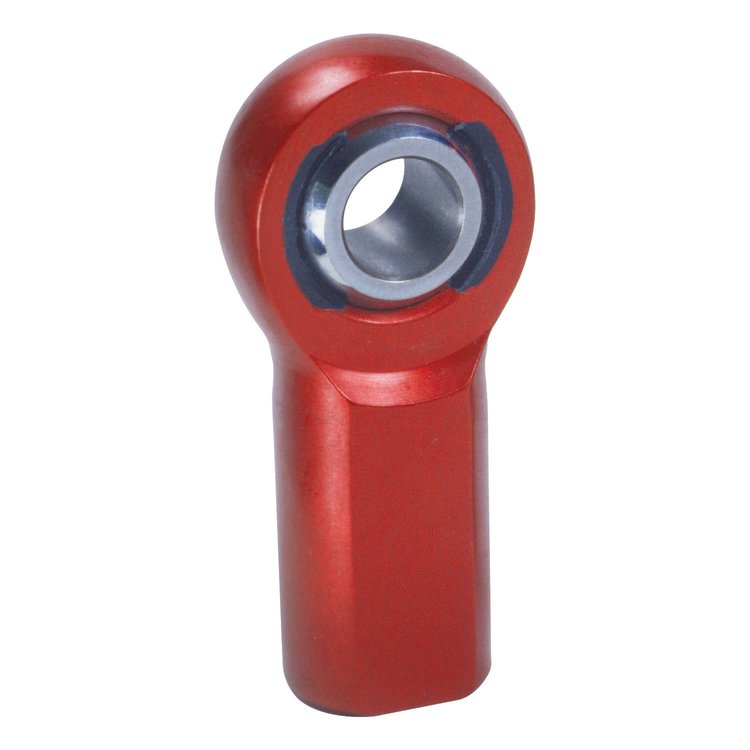

AF Aluminum Series Rod End Hole I.D.: .3125"

Name: AF Aluminum Series Rod End Hole I.D.: .3125"
Brand: QA1
SKU: 122-AFR5
Price: 8.99 USD
Availability: InStock

^$8⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

AF Aluminum Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height0.9

Package Width1.0

Package Length4.3

Weight0.05 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishRed anodized

Thread Length0.75 in (19.1 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)5/16-24 RH

QuantitySold individually

Rod End Centerline Length1.375 in (34.9 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)2,780

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAFR5

Package Qty1

Package TypeEA
