Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

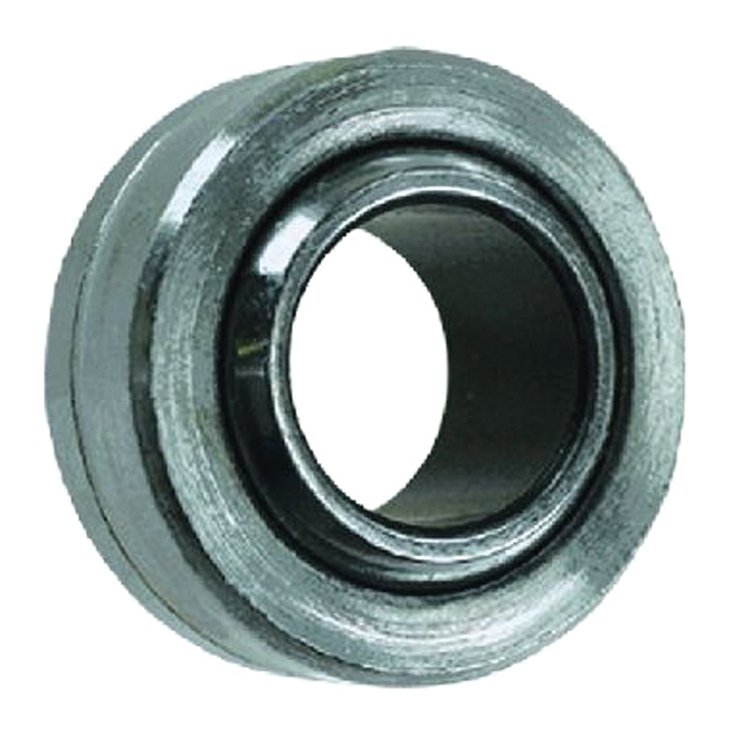

AIB Series BearingBearing (Aib) Alloy Ht Cp/ Alloy Ht 1
QA1 AIB16 Features:
QA1's AIB & AIB-T Series spherical bearings are made from chromoly steel to offer better wear characteristics than their traditional carbon steel counterparts. These spherical bearings are available with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (AIB-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel, Heat Treated, I.D. Protective Coated for Corrosion Resistance, Oil Coated, Mfr.'s Option - Heat Treated Stainless Steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height1.37
Package Width2.12
Package Length2.12
Weight0.85 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)90,000
Race Width1 in (25.4 mm)
Receiver Race Diameter2.125 in (54 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter1 in (25.4 mm)
Rod End Ball Diameter1.875 in (47.6 mm)
Chamfer Reference0.06 in (1.524 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)15 degrees
Inner Ball Width1.375 in (34.925 mm)
Vendor Part NumberAIB16
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
