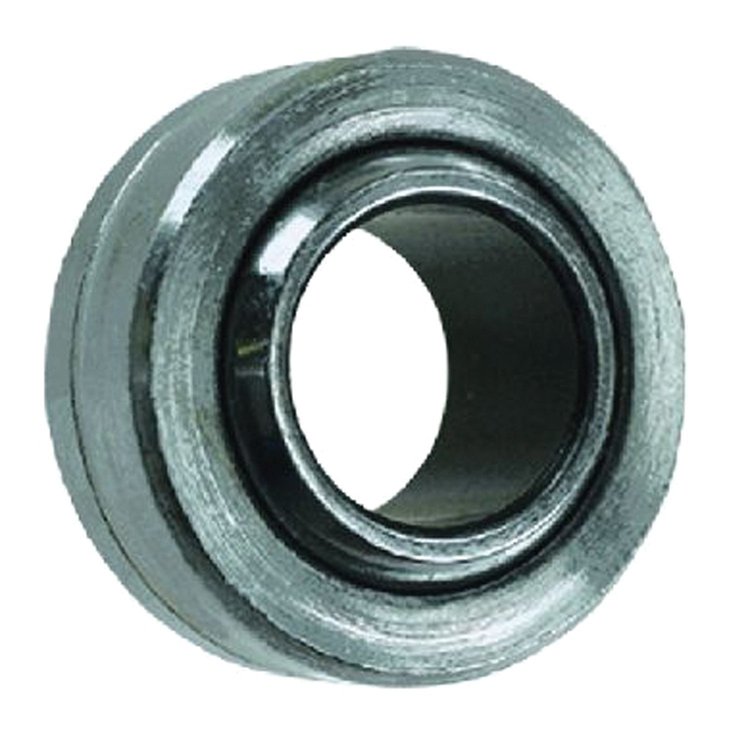

BEARING (AIB) ALLOY HT CP/ ALLOY HT 5/16 TEF

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Made from chromoly steel, QA1?s AIB & AIB-T Series spherical bearings offer better wear characteristics than their traditional carbon steel counterparts. These spherical bearings are available with an optional self-lubricating PTFE liner.` Made from chromoly steel, QA1?s AIB & AIB-T Series spherical bearings offer better wear characteristics than their traditional carbon steel counterparts. These

Part TypeSuspension Bearing

BrandQA1

Package Height0.43

Package Width0.75

Package Length0.75

Weight0.04 PG

Part CategoryPerformance Parts

Ult. Static Radial Load (Lbs.)12,900

Race Width0.344 in (8.7 mm)

Receiver Race Diameter0.75 in (19.1 mm)

Rod End Bearing MaterialSteel

QuantitySold individually

Inner Ball Diameter0.313 in (7.95 mm)

Rod End Ball Diameter0.625 in (15.9 mm)

Chamfer Reference0.02 in (0.508 mm)

Rod End Misalign Angle (Deg)11 degrees

Inner Ball Width0.437 in (11.1 mm)

Vendor Part NumberAIB5T

Package Qty1

Package TypeEA
