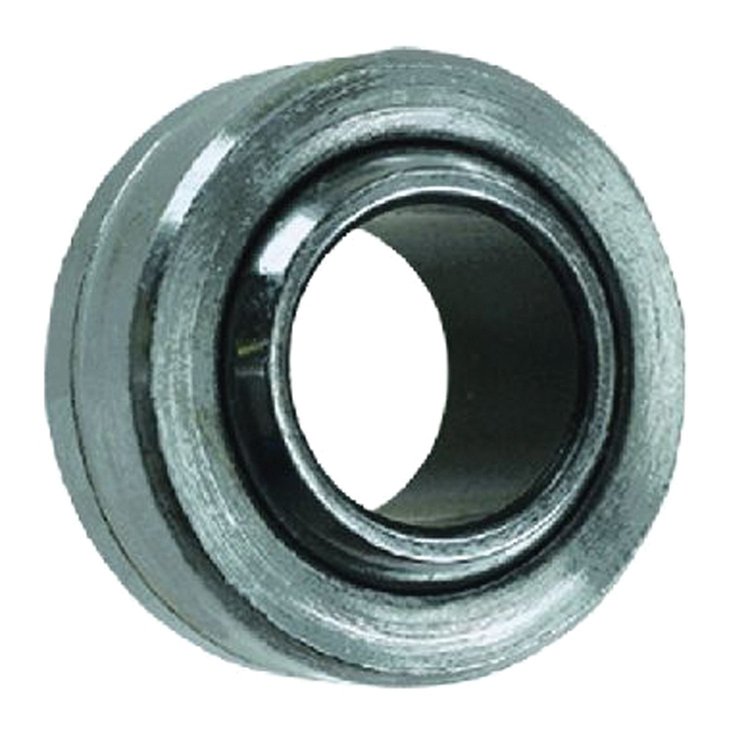

AIB Series BearingBearing (Aib) Alloy Ht Cp/ Alloy Ht 1/2
QA1 AIB8 Features:
QA1's AIB & AIB-T Series spherical bearings are made from chromoly steel to offer better wear characteristics than their traditional carbon steel counterparts. These spherical bearings are available with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (AIB-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel, Heat Treated, I.D. Protective Coated for Corrosion Resistance, Oil Coated, Mfr.'s Option - Heat Treated Stainless Steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.62
Package Width1.09
Package Length1.09
Weight0.11 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)28,110
Race Width0.5 in (12.7 mm)
Receiver Race Diameter1.094 in (27.8 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter0.5 in (12.7 mm)
Rod End Ball Diameter0.937 in (23.8 mm)
Chamfer Reference0.02 in (0.508 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)9.5 degrees
Inner Ball Width0.625 in (15.875 mm)
Vendor Part NumberAIB8
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
