Made in USA
Aluma Matic Coil-Over Shock Spring Length: 12"
InfoVehicle Info Needed
QA1PART NUMBER: 122-ALN5855P

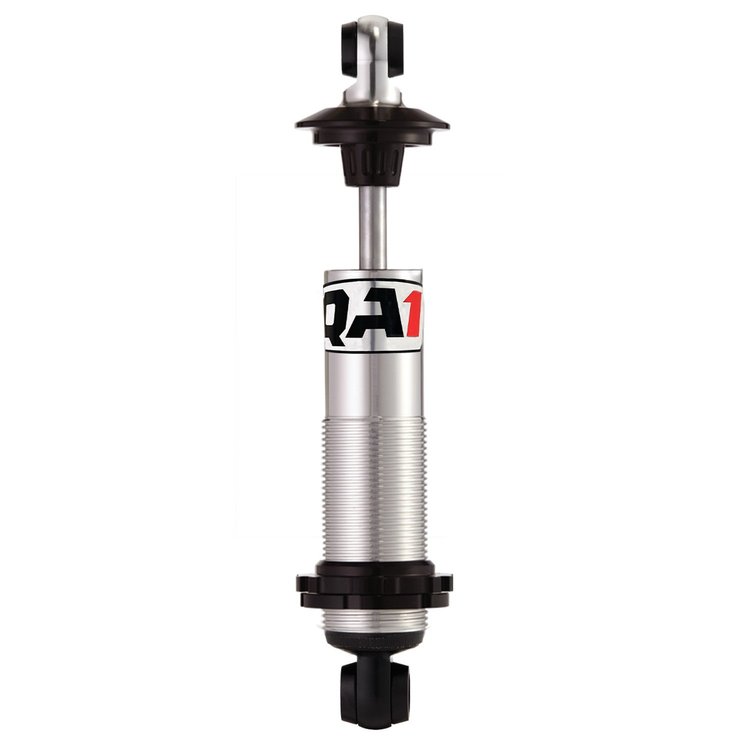

Aluma Matic Coil-Over Shock Spring Length: 12"

$21499
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

12'' Spring Length
    Aluma Matic Coil-Over Shock
  • Spring Length: 12''
  • Mounting: Poly

    QA1 Limited Lifetime Warranty

    Specifications
  • Compressed Height: 11-1/8'
  • Extended Height: 16-1/4'
  • Recommended Ride Height: 13-1/2' to 14'

The perfect ride for your rod...
QA1 Alumamatic coilover shocks apply deflective disc valving that allows for better shaft speed control offering a better control for changing road conditions. The 5/8" chrome-plated solid piston rod offers greater strength over hollow piston rods of smaller diameter. Rod flex is eliminated and valving consistency is maintaned. The double-lip seal design of these shocks reduces leakage while a secondary wiper seal prevents road grime from reaching the seals. Each adjustable shock includes an anodized aluminum spring cap, seat, locking ring, and one-piece bushings. The shocks are 100% dyno-tested and feature an anodized finish. American Made in Lakeville, MN

Show More

Features:

  • Lightweight Aluminum Body
  • Ride Height Adjustable
  • Accepts 2-1/2" O.D. Springs
  • 100% Dyno Test and Serialized
  • Revalveable and Rebuildable by the QA1 Factory or QA1 Authorized Service Centers
  • Precision Machined Aluminum Piston with P.T.F.E. Piston Band
  • 5/8" Centerless Ground, Hard Chrome Plated, Solid Piston Rod
  • Three Step Sealing System
  • Sold 1/pkg
Part TypeCoilover Shock
Product LineQA1 Aluma Matic Coil-Over Shocks
BrandQA1
Package Height3.6
Package Width3.9
Package Length19.1
Weight4.35 PG
Part CategoryPerformance Parts
Adjustable ValvingNo
Hardware IncludedYes
Coil-Over Springs IncludedNo
Gas ChargedNo
Bushing ColorBlack
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
QuantitySold individually
Lower MountEyelet
Shock Body FinishClear anodized
Upper MountEyelet
Shock Body MaterialAluminum
Recommended Spring Diameter2.5 in (63.5 mm)
Body Diameter2 in (50.8 mm)
Extended Length16.25 in (412.75 mm)
Coil-Over Shock TypeNon-adjustable
Part FitmentSemi Universal
Collapsed Length11.125 in (282.575 mm)
Internal DesignTwin-tube
Vendor Part NumberALN5855P
Package Qty1
Package TypeEA
