Vehicle Info NeededQA1PART NUMBER: 122-AML10

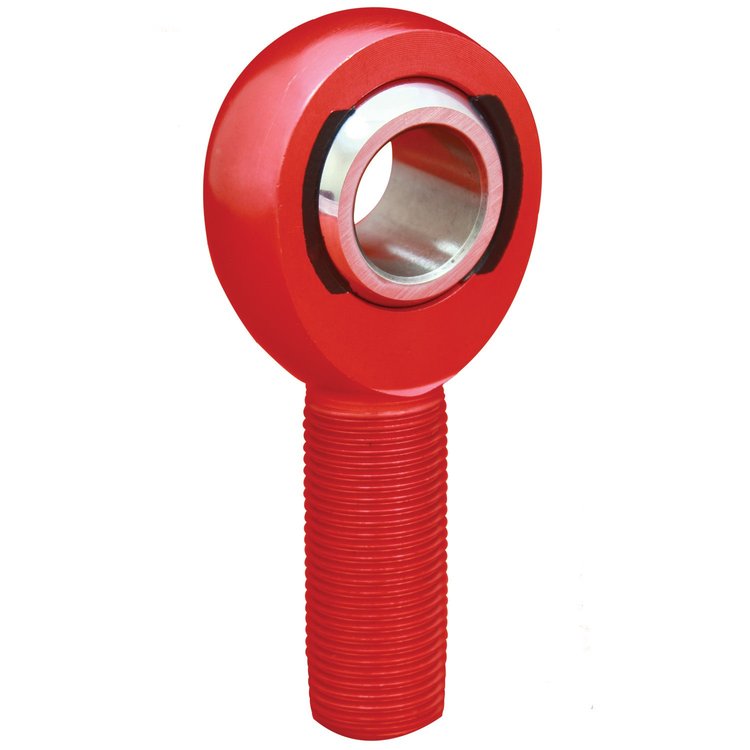

AM Aluminum Series Rod End Hole I.D.: .6250"
$2727
Ships on 09/08/2026
Lowest Price GuaranteeAM Aluminum Series Rod EndLeft Hand Thread
- AM Aluminum Series Rod End
- Hole I.D.: .6250"
- LH Thread: 5/8"-18
ROD END (A) ENDURA ALUM , M-L 5/8-5/8 RED
Part TypeRod End
BrandQA1
Package Height0.75
Package Width1.5
Package Length3.37
Weight0.21 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishRed anodized
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)16 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)8,600
Rod End MaterialAluminum
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberAML10
Package Qty1
Package TypeEA
