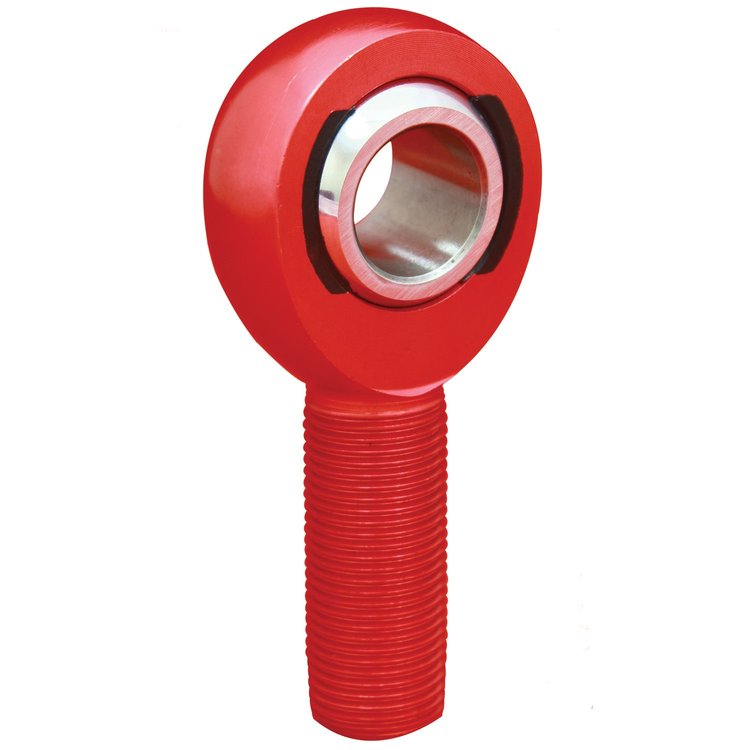

AM Aluminum Series Rod End Hole I.D.: .2500"
Product Discontinued
QA1PART NUMBER: 122-AML4

AM Aluminum Series Rod End Hole I.D.: .2500"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

AM Aluminum Series Rod End
  • Left Hand Thread
    • AM Aluminum Series Rod End
    • Hole I.D.: .2500"
    • LH Thread: 1/4"-28

      ROD END (A) ENDURA ALUM , M-L 1/4-1/4 RED

    Selection, Quality, Reliability...
    These rod ends are manufactured with precision tolerances and are subjected to stringent quality control standards. Assure yourself of a product that is capable of meeting your most demanding requirements!

    Show More

    The QA1 Endura Racing Series Rod End The body is machined with a significant groove going all the way around the interior of the body. The ball is then inserted into the machined slot, and a PTFE®/Kevlar® material is injected. Serving as a liner to keep dirt and debris out, while also lubricating the rod end. In addition to providing added strength, the injection molded race also won't "pound out" like traditional PTFE (PTFE®) liners, increasing the longevity of your rod ends!



    AM Male Aluminum Series Rod Ends: QA1's AM Aluminum Series rod ends are designed specifically for performance applications where weight is a concern. With a PTFE®/Kevlar® injection molded race, these rod ends are completely self-sealing and self-lubricating, keeping dirt and debris out. Over 10% lighter than traditional three-piece aluminum rod ends, the AM Series rod ends are the most wear-resistant aluminum design available.

    • Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
    • Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
    • Body: Aircraft Aluminum, Color Anodized Red as Standard
    • Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.




    QA1 Endura A-Series Aluminum Rod Ends are also available with FemaleThreads


    Part TypeRod End
    Product LineQA1 Endura AM Series Rod Ends
    BrandQA1
    Package Height0.37
    Package Width0.75
    Package Length1.93
    Weight0.02 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishRed anodized
    Thread Length1 in (25.4 mm)
    Rod End Head Bore Size0.25 in (6.4 mm)
    Rod End Thread Size (In.)1/4-28 LH
    QuantitySold individually
    Rod End Centerline Length1.562 in (39.7 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)16 degrees
    Rod End Head Diameter0.75 in (19.1 mm)
    Rod End Ball Width0.375 in (9.5 mm)
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Head Width0.375 in (9.5 mm)
    Rod End Static Load Capacity (Lbs.)1,433
    Rod End MaterialAluminum
    Rod End StylePTFE/KEVLAR« lined
    Part FitmentUniversal
    Vendor Part NumberAML4
    Package Qty1
    Package TypeEA
