QA1PART NUMBER: 122-AML5

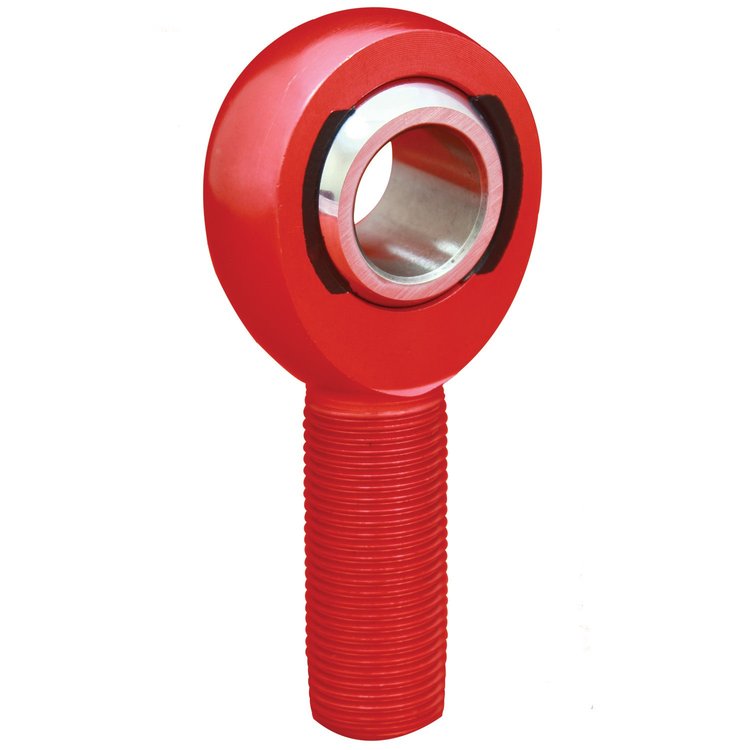

AM Aluminum Series Rod End Hole I.D.: .3125"

Name: AM Aluminum Series Rod End Hole I.D.: .3125"
Brand: QA1
SKU: 122-AML5
Price: 8.99 USD
Availability: InStock

^$8⁹⁹

2 left in stock

Ships Today

Lowest Price Guarantee

AM Aluminum Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height0.5

Package Width1.0

Package Length2.25

Weight0.04 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishRed anodized

Thread Length1.25 in (31.8 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)5/16-24 LH

QuantitySold individually

Rod End Centerline Length1.875 in (47.6 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)2,284

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAML5

Package Qty1

Package TypeEA
