QA1PART NUMBER: 122-AML8-10

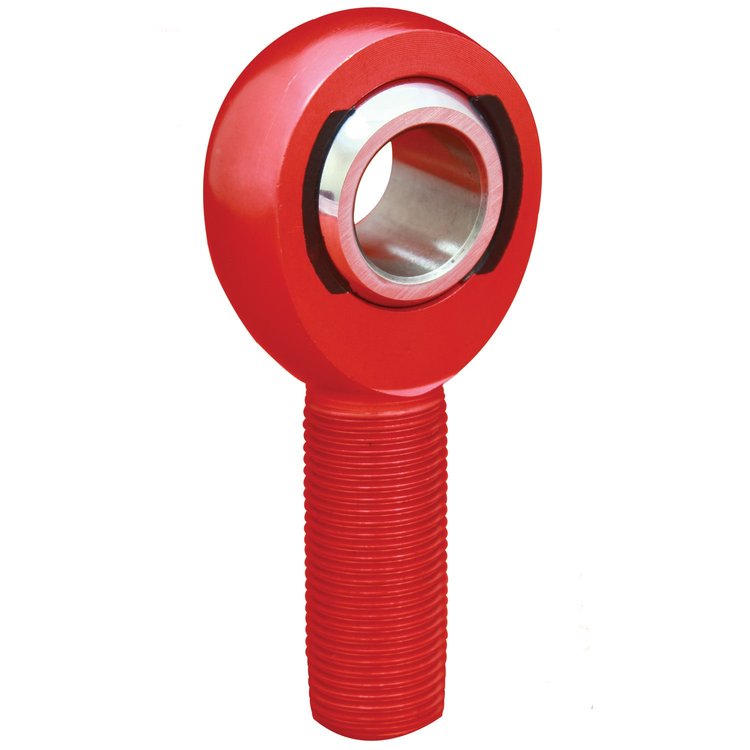

AM Aluminum Series Rod End Hole I.D.: .5000"

Name: AM Aluminum Series Rod End Hole I.D.: .5000"
Brand: QA1
SKU: 122-AML8-10
Price: 23.08 USD
Availability: InStock

^$23⁰⁸

Ships on 09/08/2026

Lowest Price Guarantee

AM Aluminum Series Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height1.0

Package Width3.0

Package Length5.0

Weight0.18 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishRed anodized

Thread Length1.625 in (41.3 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)5/8-18 LH

QuantitySold individually

Rod End Centerline Length2.625 in (66.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)10 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)15,000

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAML8-10

Package Qty1

Package TypeEA
