Vehicle Info NeededQA1PART NUMBER: 122-AMR12

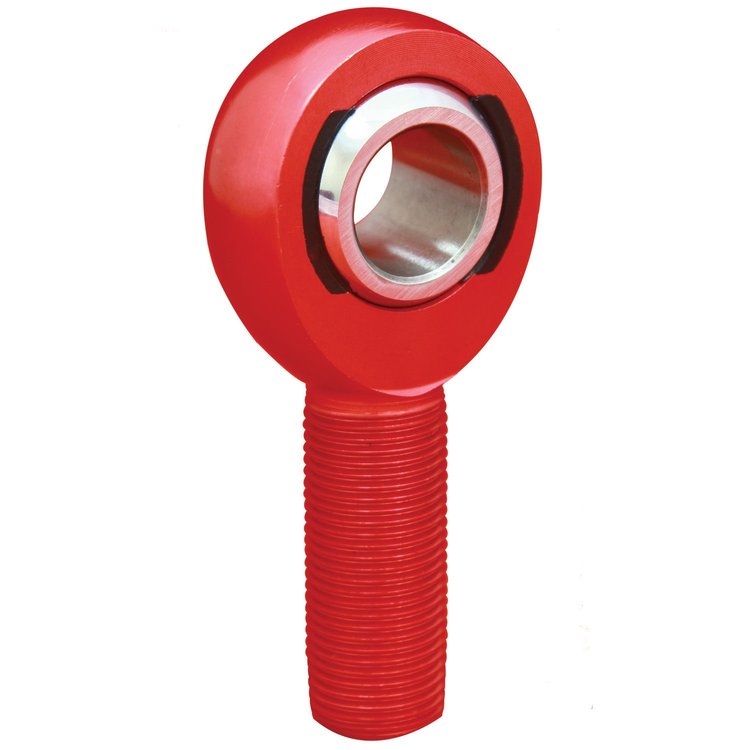

AM Aluminum Series Rod End Hole I.D.: .7500"
$2499
Ships on 09/08/2026
Lowest Price GuaranteeAM Aluminum Series Rod EndRight Hand Thread
- AM Aluminum Series Rod End
- Hole I.D.: .7500"
- RH Thread: 3/4"-16
ROD END (A) ENDURA ALUM , M-R 3/4-3/4 RED
Part TypeRod End
BrandQA1
Package Height2.1
Package Width2.8
Package Length5.8
Weight0.35 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishRed anodized
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)14 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)13,400
Rod End MaterialAluminum
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberAMR12
Package Qty1
Package TypeEA
