QA1PART NUMBER: 122-AMR3

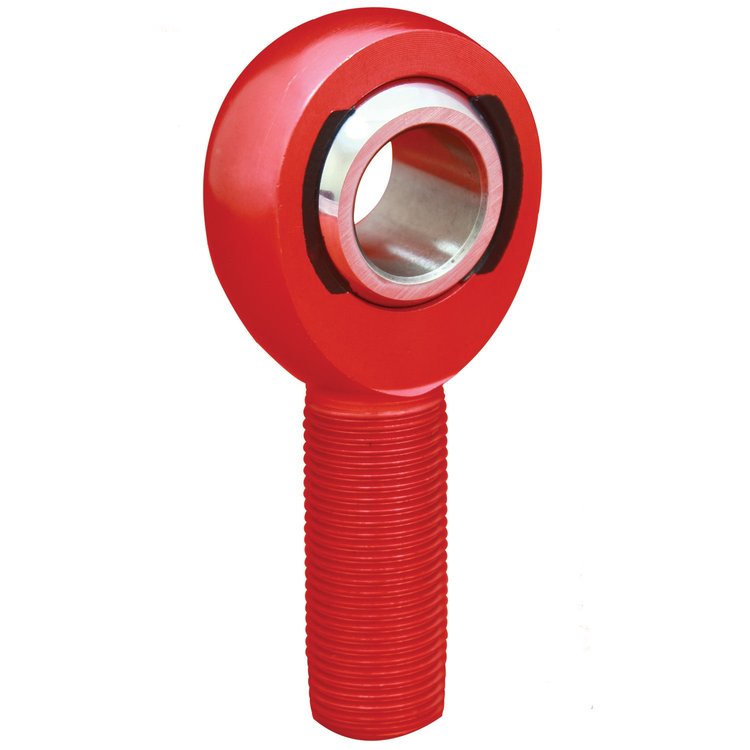

AM Aluminum Series Rod End Hole I.D.: .1900"

Name: AM Aluminum Series Rod End Hole I.D.: .1900"
Brand: QA1
SKU: 122-AMR3
Price: 7.99 USD
Availability: InStock

^$7⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

AM Aluminum Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height0.8

Package Width1.3

Package Length3.1

Weight0.03 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishRed anodized

Rod End Thread Size10-32 RH NF

Thread Length0.75 in (19.1 mm)

Rod End Head Bore Size0.19 in (4.8 mm)

QuantitySold individually

Rod End Centerline Length1.25 in (31.8 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)13 degrees

Rod End Head Diameter0.625 in (15.9 mm)

Rod End Ball Width0.312 in (7.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.312 in (7.9 mm)

Rod End Static Load Capacity (Lbs.)788

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAMR3

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
