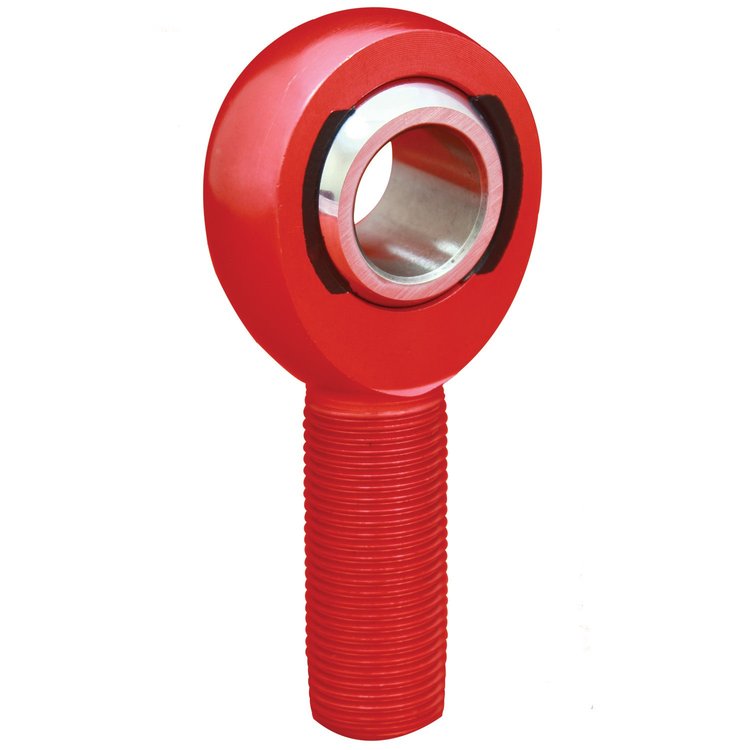

QA1PART NUMBER: 122-AMR4

AM Aluminum Series Rod End Hole I.D.: .2500"

Name: AM Aluminum Series Rod End Hole I.D.: .2500"
Brand: QA1
SKU: 122-AMR4
Price: 7.99 USD
Availability: InStock

^$7⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

AM Aluminum Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height0.9

Package Width1.1

Package Length3.1

Weight0.02 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishRed anodized

Thread Length1 in (25.4 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)1/4-28 RH

QuantitySold individually

Rod End Centerline Length1.562 in (39.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)16 degrees

Rod End Head Diameter0.75 in (19.1 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)1,433

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAMR4

Package Qty1

Package TypeEA
